SKU: FYJ35KF-SKF

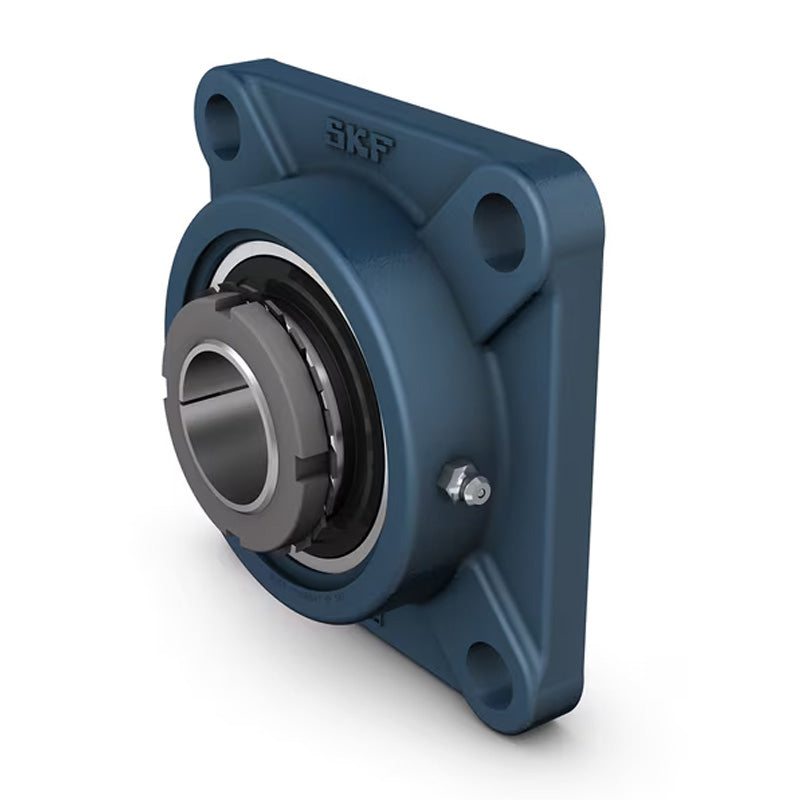

SKF FYJ35KF Flanged Unit with a Square Cast Housing with 30mm Insert
SKF FYJ35KF Flanged Unit with a Square Cast Housing with 30mm Insert
Regular price
$91.56
ex VAT
Regular price
Sale price
$91.56
ex VAT
In stock
Price Break
10+
$61.33
20+
$57.88
30+
$57.19
40+
$56.51
50+
$55.82
75+
$55.13
100+
$51.68
200+
$50.99
250+
$50.30
500+
$49.61
1000+
$48.24
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FYJ
- Bolt Hole Centres:
- 92mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 34mm |
| A2 | 13mm |
| B1 | 43mm |
| Da | 106.4mm |
| J | 92mm |
| L | 117mm |
| N | 14mm |
| G | 12mm |
| s1 | 24.3mm |
| T | 43.3mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.35 kg |
