SKU: FYJ508-SKF

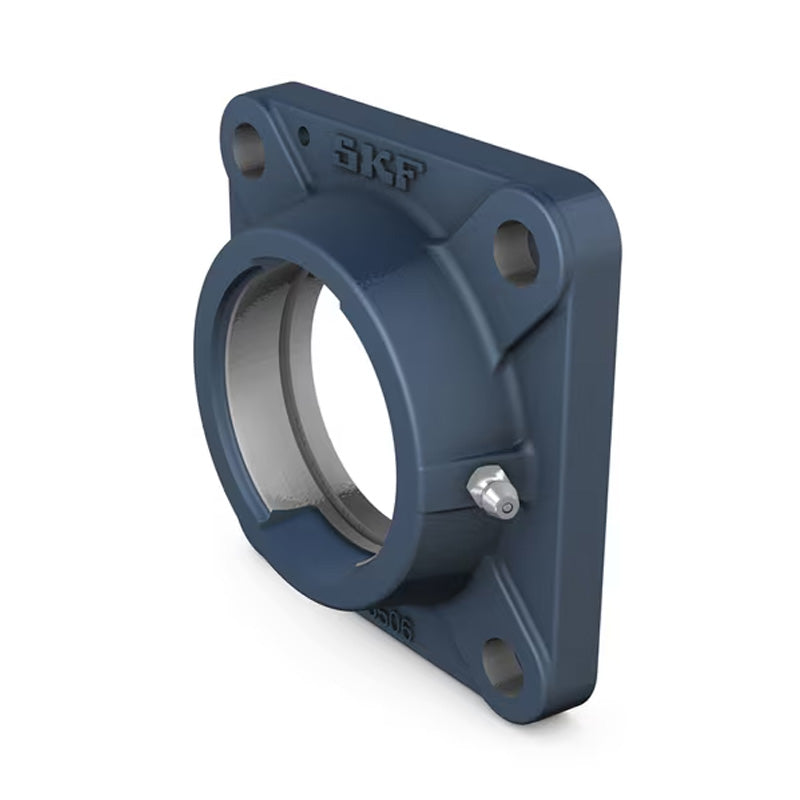

SKF FYJ508 Four Bolt Cast Iron Square Housing Unit Only
SKF FYJ508 Four Bolt Cast Iron Square Housing Unit Only
Regular price
$34.84
ex VAT
Regular price
Sale price
$34.84
ex VAT
In stock
Price Break
4+
$23.33
9+
$22.02
19+
$21.76
29+
$21.50
39+
$21.24
49+
$20.97
59+
$19.66
69+
$19.40
79+
$19.14
89+
$18.88
99+
$18.35
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Note: This Housing unit does not inlcude an insert
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Style:
- FYJ
- Bolt Hole Centres:
- 102mm

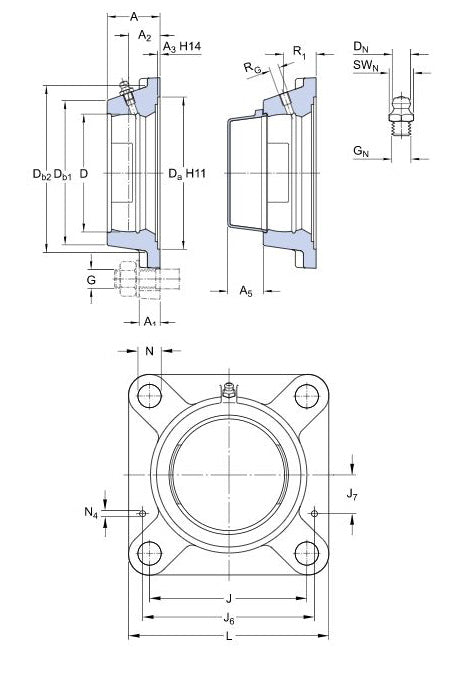

Technical
Technical
| D | 80mm |
|---|---|
| Da | 115.9mm |
| Db1 | 99mm |
| Db2 | 107mm |
| A | 36mm |
| A1 | 14mm |
| A2 | 21 mm |
| A3 | 3.2mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| RG | 1/4-28UNF |
| R1 | 23mm |
| DN | 6.5mm |
| SWN | 7mm |
| GN | 1/4-28 SAE-LT |
| J7 | 34mm |
| N4 | 4mm |
| G | 14mm |
| G | 0.5625in |
