SKU: FYJ60KF-SKF

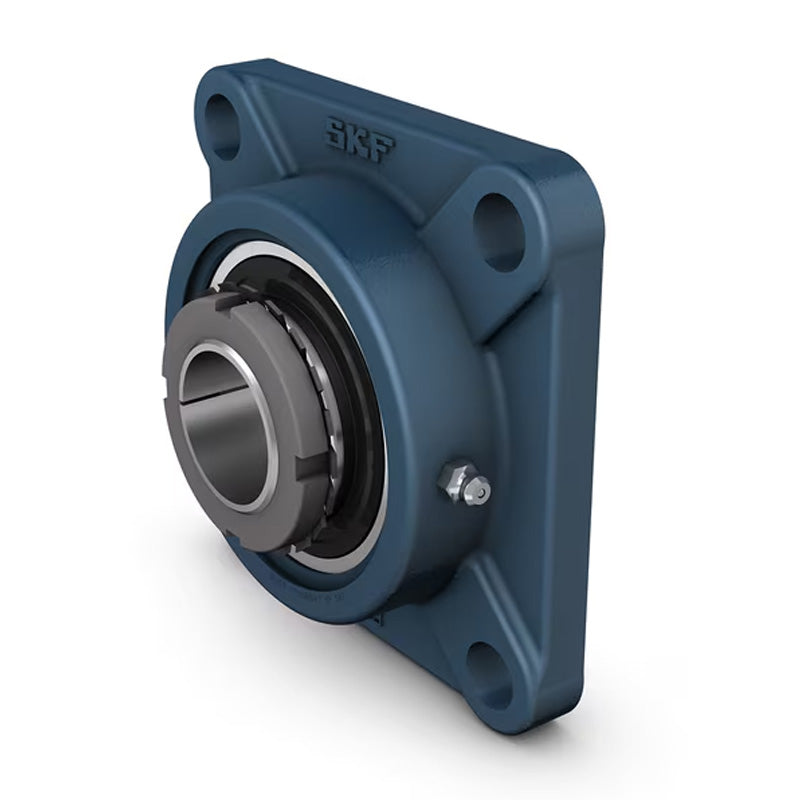

SKF FYJ60KF Flanged Unit with a Square Cast Housing with 55mm Insert
SKF FYJ60KF Flanged Unit with a Square Cast Housing with 55mm Insert
Regular price
$215.02
ex VAT
Regular price
Sale price
$215.02
ex VAT
In stock
Price Break
10+
$144.03
20+
$135.94
30+
$134.32
40+
$132.70
50+
$131.08
75+
$129.46
100+
$121.37
200+
$119.76
250+
$118.14
500+
$116.52
1000+
$113.28
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FYJ
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 48mm |
| A2 | 18mm |
| B1 | 62mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| G | 16mm |
| s1 | 34.3mm |
| T | 63.3mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 4.6 kg |
