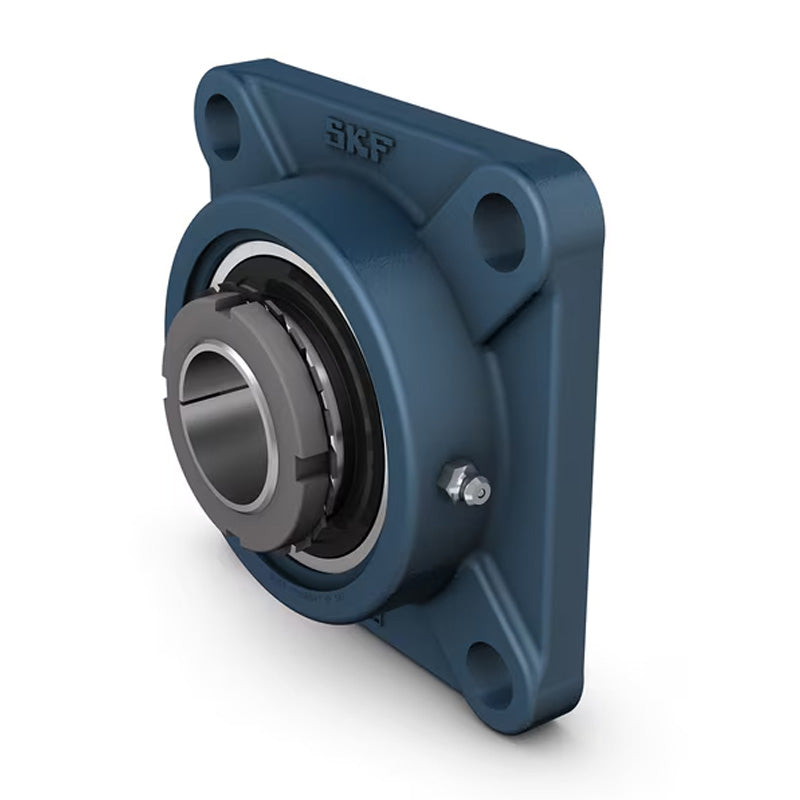

SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
Regular price
$257.40
ex VAT
Regular price
Sale price
$257.40
ex VAT
In stock
Price Break
10+
$172.41
20+
$162.73
30+
$160.79
40+
$158.85
50+
$156.92
75+
$154.98
100+
$145.29
200+
$143.36
250+
$141.42
500+
$139.48
1000+
$135.61
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FYJ
- Bolt Hole Centres:
- 149mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 50mm |
| A2 | 22mm |
| B1 | 65mm |
| Da | 161.9mm |
| J | 149mm |
| L | 187mm |
| N | 19mm |
| G | 16mm |
| s1 | 35.8mm |
| T | 65.8mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 6 kg |
