SKU: FYK40TR-SKF

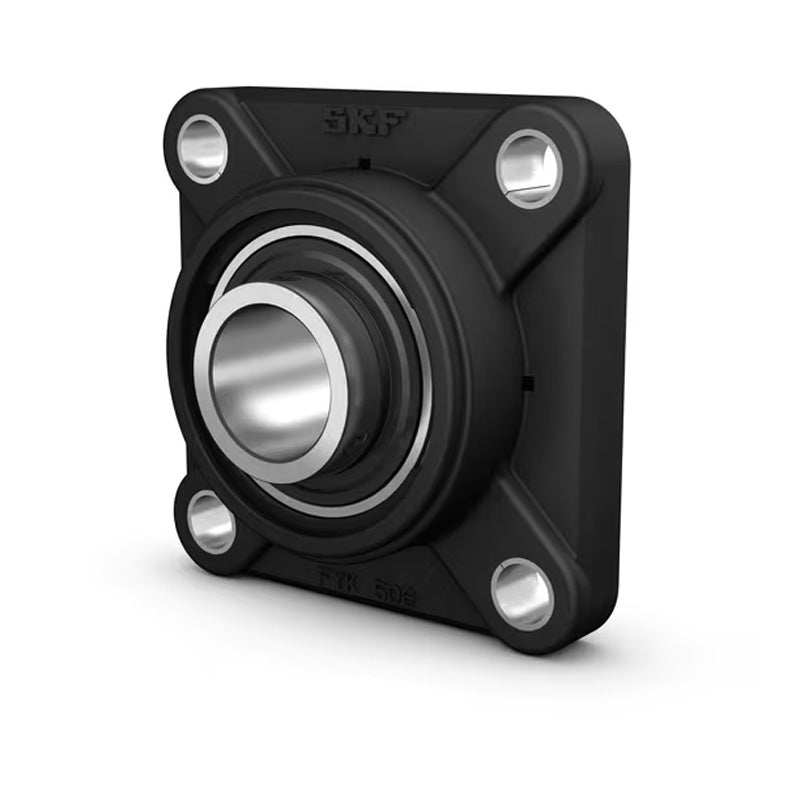

SKF FYK40TR Composite Flanged Unit with a Square Housing with Grub Screw 40mm Insert
SKF FYK40TR Composite Flanged Unit with a Square Housing with Grub Screw 40mm Insert
Regular price
$103.29
ex VAT
Regular price
Sale price
$103.29
ex VAT
In stock
Price Break
10+
$69.19
20+
$65.30
30+
$64.52
40+
$63.74
50+
$62.97
75+
$62.19
100+
$58.30
200+
$57.53
250+
$56.75
500+
$55.97
1000+
$54.42
Quantity
Couldn't load pickup availability
Description
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYK
- Bolt Hole Centres:
- 101.5mm

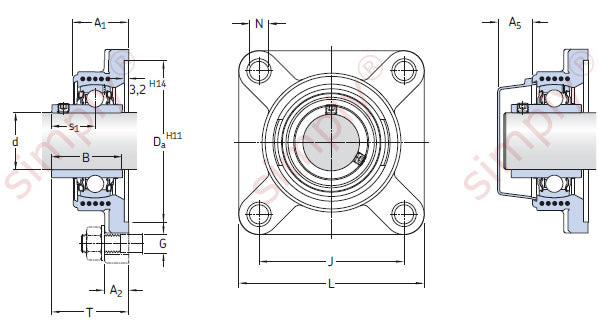

Technical
Technical
| d | 40mm |
|---|---|
| A1 | 39mm |
| A2 | 17mm |
| B | 49.2mm |
| Da | 115.9mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.5mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 23.5mm |
| Weight | 0.87 kg |
| Compatible end cover closed | ECY208 |
