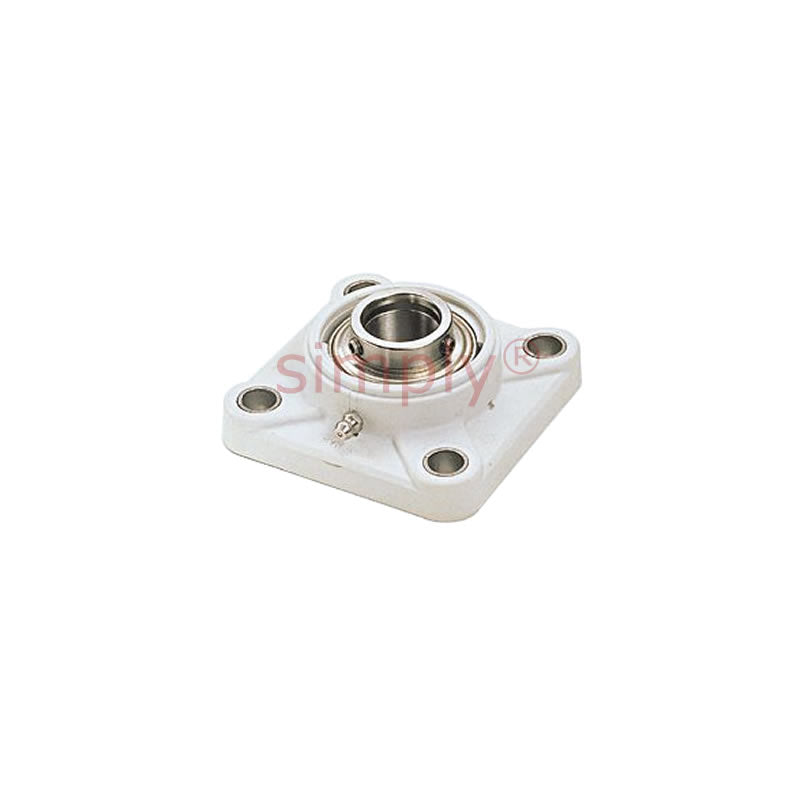

SKF FYL3/4THR Square Housing for the Food Industry with 3/4 inch Insert
SKF FYL3/4THR Square Housing for the Food Industry with 3/4 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units for the Food Industry: This unit is optimised for handling shock loads and high vibration levels. It incorporates a steel coil embedded in the polymer to provide high dimensional stability and excellent strength. The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy. These units are lubricated with food-grade grease. Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- FYL
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| d | 3/4 inch |
|---|---|
| A1 | 27.8mm |
| A2 | 13.4mm |
| B | 31mm |
| J | 63.5mm |
| L | 86mm |
| N | 11mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 36.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 10.8 kN |
| Fatigue load limit | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 20.5mm |
| Weight | 0.28 kg |
| Housing | FYL504 |
| Insert | YAR204-012-2RFGR/HV |
| Compatible end cover closed | ECL204 |
| Compatible end cover open | ECL204-012B |
