SKU: FYM2.3/16TF-SKF
SKF FYM2-3/16TF Square Cast Housing with Grub Screw 2-3/16 inch Insert
SKF FYM2-3/16TF Square Cast Housing with Grub Screw 2-3/16 inch Insert
Regular price
$208.01
ex VAT
Regular price
Sale price
$208.01
ex VAT
In stock
Price Break
10+
$139.33
20+
$131.50
30+
$129.93
40+
$128.37
50+
$126.80
75+
$125.24
100+
$117.41
200+
$115.85
250+
$114.28
500+
$112.71
1000+
$109.58
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- FYM
- Bolt Hole Centres:
- 143mm
Technical
Technical

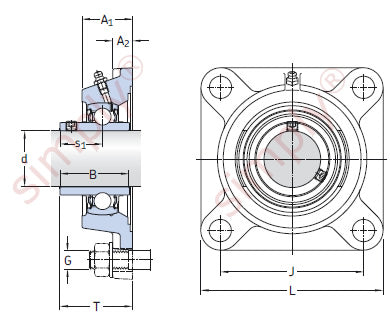

| d | 2-3/16 inch |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B | 65.1mm |
| J | 143mm |
| L | 175mm |
| G | 16mm |
| s1 | 39.7mm |
| T | 73.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 5 kg |
| Housing | Insert |
