SKU: FYT1.1/2TF-SKF

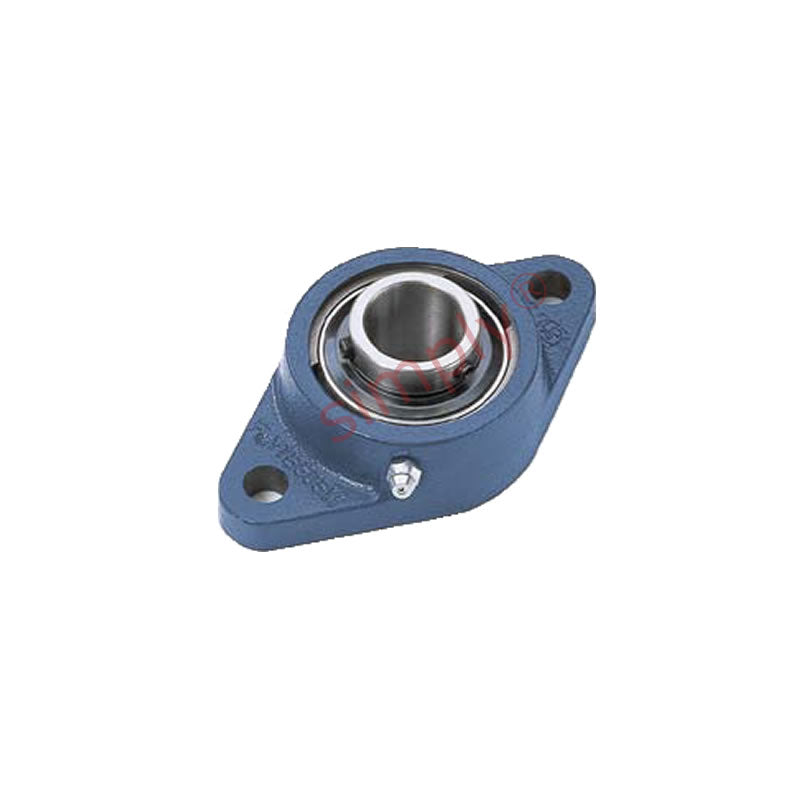

SKF FYT1-1/2TF Oval Cast Housing with Grub Screw 1-1/2 inch Insert
SKF FYT1-1/2TF Oval Cast Housing with Grub Screw 1-1/2 inch Insert
Regular price
$74.50
ex VAT
Regular price
Sale price
$74.50
ex VAT
In stock
Price Break
10+
$49.90
20+
$47.10
30+
$46.54
40+
$45.98
50+
$45.42
75+
$44.86
100+
$42.05
200+
$41.49
250+
$40.93
500+
$40.37
1000+
$39.25
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- FYT
- Bolt Hole Centres:
- 143.7mm
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| H | 171.5mm |
| J | 143.7mm |
| L | 102mm |
| N | 14.3mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 1.7 kg |
| Housing | Insert |
