SKU: FYT1.15/16TF-SKF

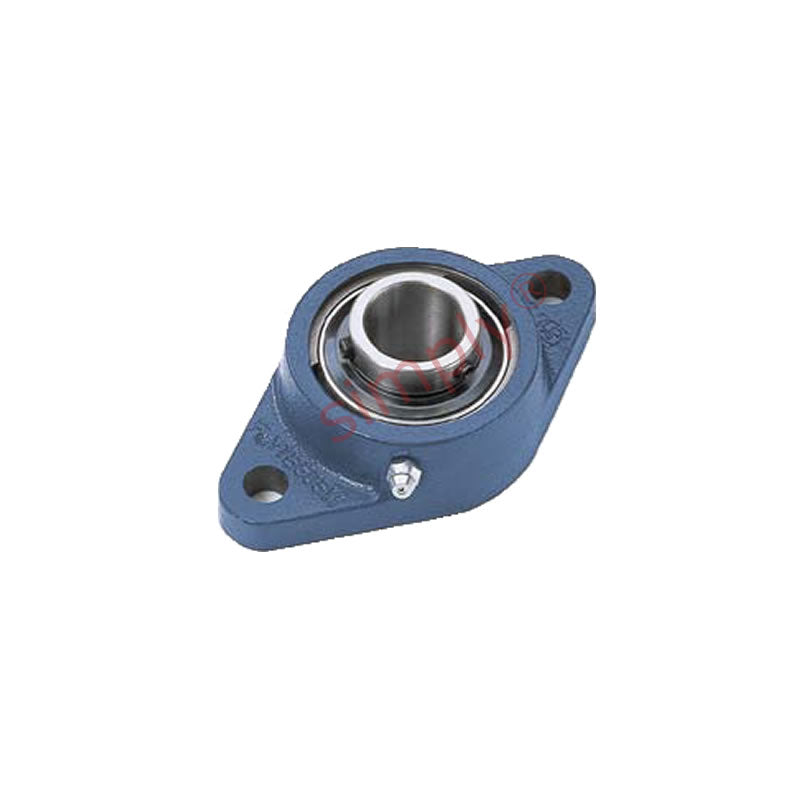

SKF FYT1-15/16TF Oval Cast Housing with Grub Screw 1-15/16 inch Insert
SKF FYT1-15/16TF Oval Cast Housing with Grub Screw 1-15/16 inch Insert
Regular price
$147.14
ex VAT
Regular price
Sale price
$147.14
ex VAT
In stock
Price Break
10+
$98.56
20+
$93.02
30+
$91.92
40+
$90.81
50+
$89.70
75+
$88.59
100+
$83.06
200+
$81.95
250+
$80.84
500+
$79.74
1000+
$77.52
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 157.2mm
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| H | 189mm |
| J | 157.2mm |
| L | 116mm |
| N | 15.9mm |
| G | 14mm |
| s1 | 32.6mm |
| T | 60.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.25 kg |
| Housing | Insert |
