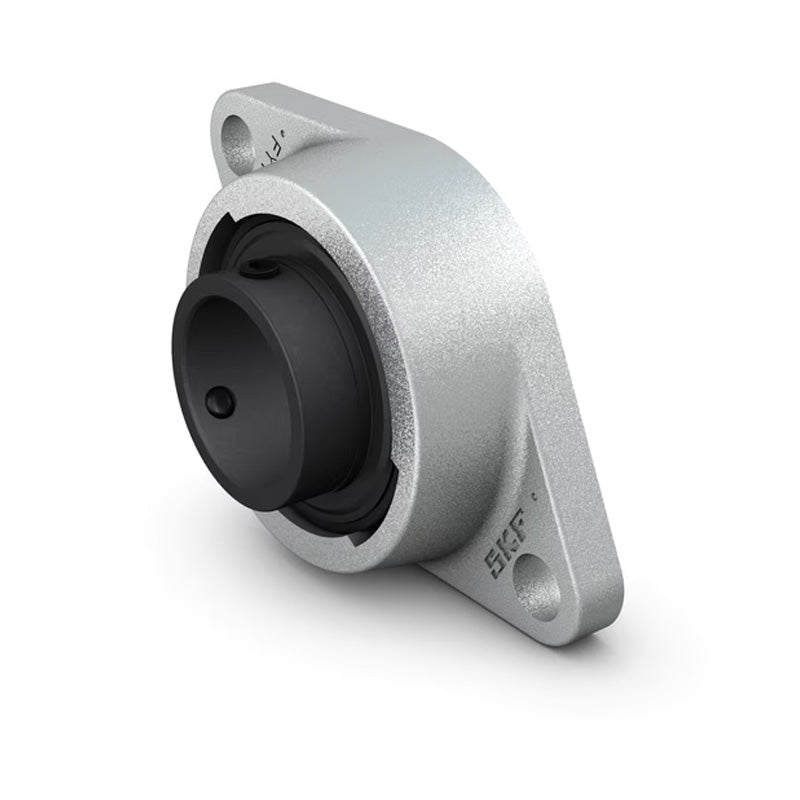

• SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
1 1

SKU: FYT1.3/4TF/VA228-SKF

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
$366.53 ex VAT
$366.53 ex VAT
Sale Sold out

In stock

Price Break
10+ $245.52
19+ $231.72
29+ $228.97
39+ $226.21
49+ $223.45
74+ $220.69
99+ $206.90
199+ $204.14
249+ $201.38
499+ $198.62
999+ $193.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Temperature Range:
High Temp
Technical
d 1-3/4 inch
A1 39mm
A2 14mm
B 49.2mm
H 178.5mm
J 148.5mm
L 111mm
N 15.9mm
G 14mm
T 54.2mm
Static load Co 21.6 kN
Weight 1.8 kg
