SKU: FYT1.3/8TF-SKF

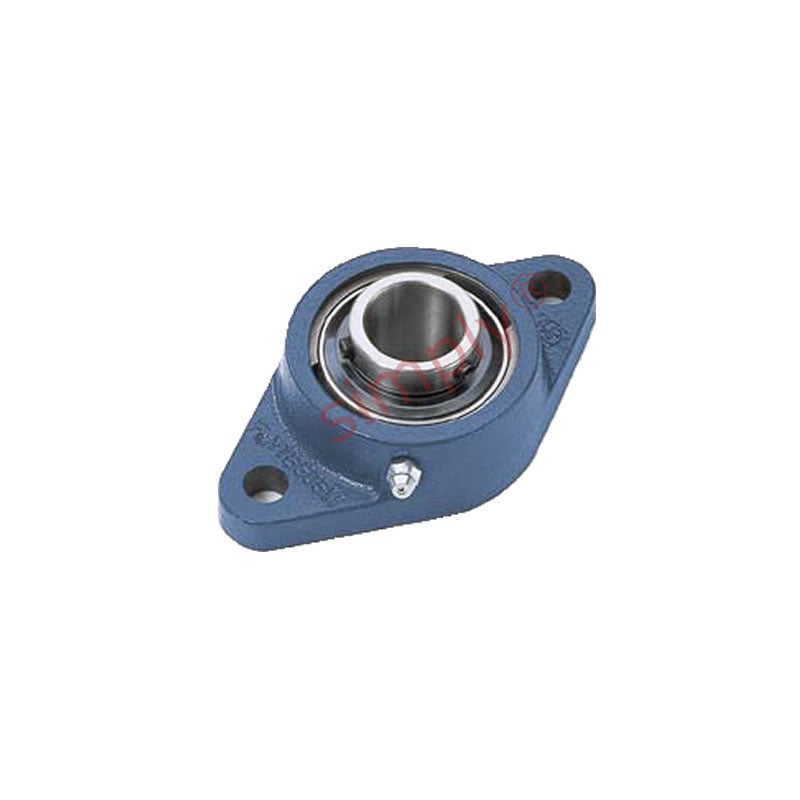

SKF FYT1-3/8TF Oval Cast Housing with Grub Screw 1-3/8 inch Insert
SKF FYT1-3/8TF Oval Cast Housing with Grub Screw 1-3/8 inch Insert
Regular price
$79.47
ex VAT
Regular price
Sale price
$79.47
ex VAT
In stock
Price Break
10+
$53.24
20+
$50.24
30+
$49.65
40+
$49.05
50+
$48.45
75+
$47.85
100+
$44.86
200+
$44.26
250+
$43.66
500+
$43.07
1000+
$41.87
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- FYT
- Bolt Hole Centres:
- 130.2mm
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| H | 156mm |
| J | 130.2mm |
| L | 96mm |
| N | 14.3mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.27 kg |
| Housing | Insert |
