SKU: FYT1.TF-SKF

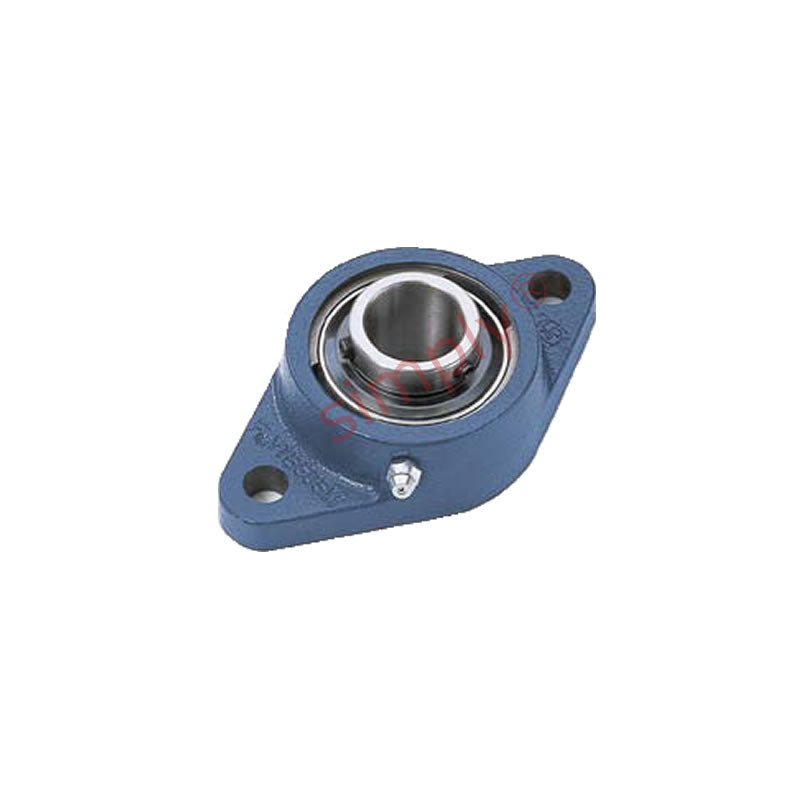

SKF FYT1TF Oval Cast Housing with Grub Screw 1 inch Insert
SKF FYT1TF Oval Cast Housing with Grub Screw 1 inch Insert
Regular price
$66.66
ex VAT
Regular price
Sale price
$66.66
ex VAT
In stock
Price Break
10+
$44.65
20+
$42.14
30+
$41.64
40+
$41.14
50+
$40.63
75+
$40.13
100+
$37.62
200+
$37.12
250+
$36.62
500+
$36.12
1000+
$35.12
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- FYT
- Bolt Hole Centres:
- 98.8mm
Technical
Technical
| d | 1 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| H | 124mm |
| J | 98.8mm |
| L | 70mm |
| N | 12.7mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.6 kg |
| Housing | Insert |
