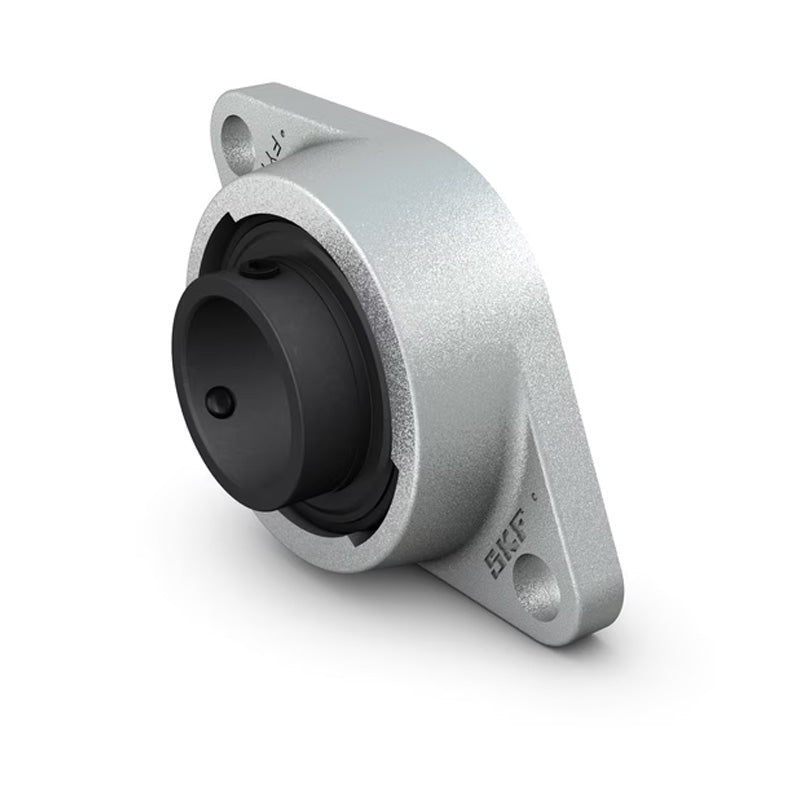

• SKF FYT1TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1 inch
1 1

SKU: FYT1.TF/VA228-SKF

SKF FYT1TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1 inch

SKF FYT1TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1 inch
$177.30 ex VAT
$177.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $118.76
19+ $112.09
29+ $110.75
39+ $109.42
49+ $108.09
74+ $106.75
99+ $100.08
199+ $98.75
249+ $97.41
499+ $96.08
999+ $93.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
25.4mm = 1 inch
Temperature Range:
High Temp
Technical
d 1 inch
A1 30mm
A2 12mm
B 34.1mm
H 124mm
J 98.9mm
L 70mm
N 12.7mm
G 10mm
T 38.8mm
Static load Co 7.8 kN
Weight 0.63 kg
