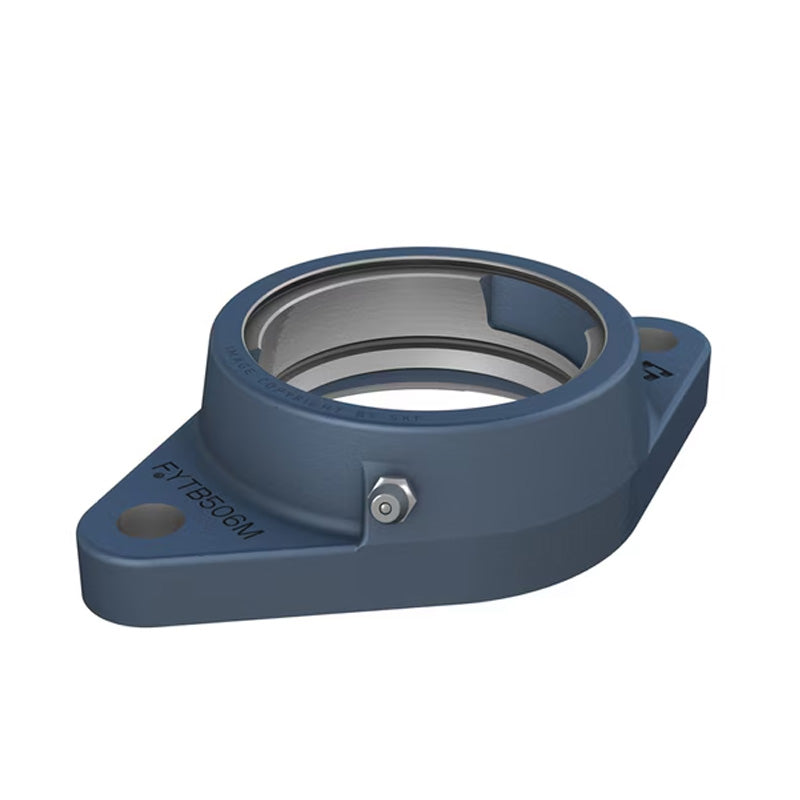

SKF FYT2RM Oval Cast Housing with Grub Screw 2 inch Insert
SKF FYT2RM Oval Cast Housing with Grub Screw 2 inch Insert
Regular price
$136.22
ex VAT
Regular price
Sale price
$136.22
ex VAT
In stock
Price Break
10+
$91.24
20+
$86.12
30+
$85.09
40+
$84.07
50+
$83.04
75+
$82.02
100+
$76.89
200+
$75.87
250+
$74.84
500+
$73.82
1000+
$71.77
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- FYT
- Bolt Hole Centres:
- 184.2mm

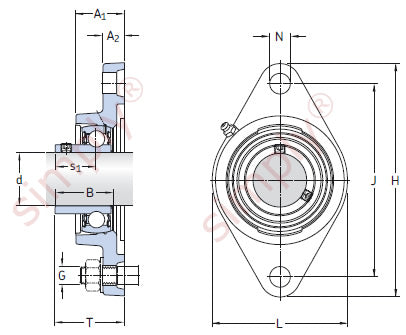

Technical
Technical
| d | 2 inch |
|---|---|
| A1 | 47.6mm |
| A2 | 20.6mm |
| B | 45mm |
| H | 216mm |
| J | 184.2mm |
| L | 127mm |
| N | 19mm |
| G | 16mm |
| s1 | 32.5mm |
| T | 62.3mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 3.3 kg |
| Housing | Insert |
