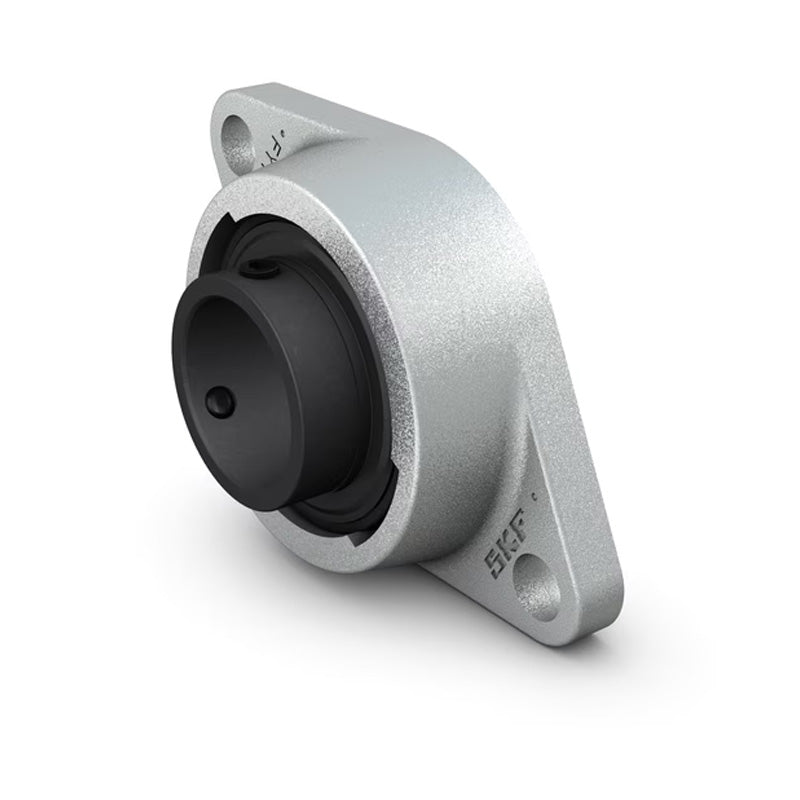

• SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
1 1

SKU: FYT20TF/VA228-SKF

SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm

SKF FYT20TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 20mm
$156.92 ex VAT
$156.92 ex VAT
Sale Sold out

In stock

Price Break
10+ $105.11
19+ $99.20
29+ $98.02
39+ $96.84
49+ $95.66
74+ $94.48
99+ $88.57
199+ $87.39
249+ $86.21
499+ $85.03
999+ $82.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
20mm
Temperature Range:
High Temp
Technical
d 20mm
A1 24.6mm
A2 11.11mm
B 31mm
H 112mm
J 89.7mm
L 60.3mm
N 11.1mm
G 10mm
T 32.6mm
Dynamic load C 12.7 kN
Static load Co 6.55 kN
Weight 0.5 kg
