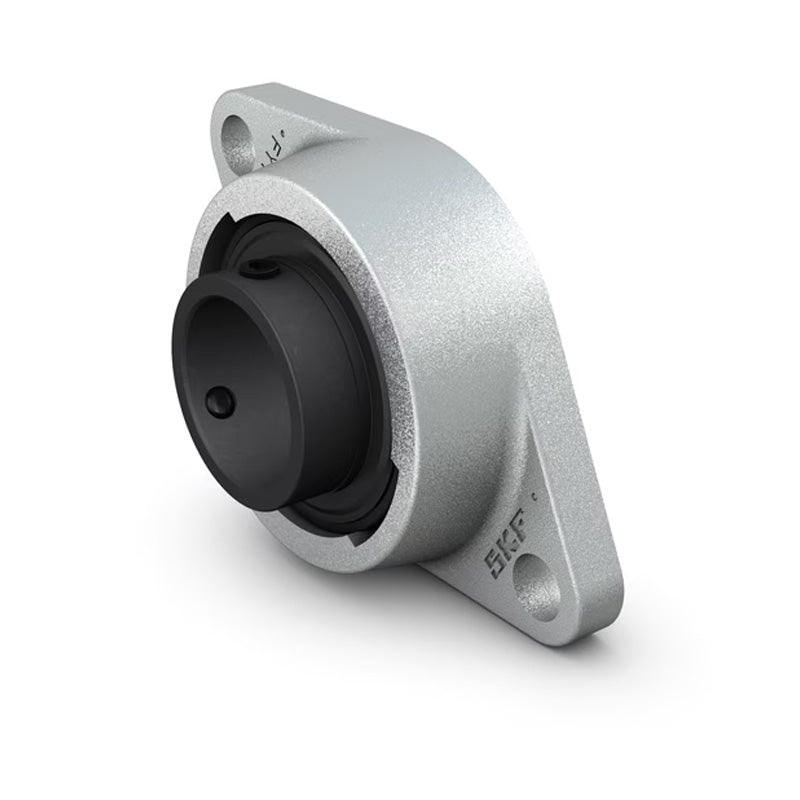

• SKF FYT50TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
1 1

SKU: FYT50TF/VA228-SKF

SKF FYT50TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm

SKF FYT50TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 50mm
$518.62 ex VAT
$518.62 ex VAT
Sale Sold out

In stock

Price Break
10+ $347.38
19+ $327.87
29+ $323.96
39+ $320.06
49+ $316.16
74+ $312.25
99+ $292.74
199+ $288.84
249+ $284.93
499+ $281.03
999+ $273.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Temperature Range:
High Temp
Technical
d 50mm
A1 43mm
A2 15mm
B 51.6mm
H 189mm
J 157.2mm
L 116mm
N 15.9mm
G 14mm
T 60.6mm
Dynamic load C 35.1 kN
Static load Co 23.2 kN
Weight 2.24 kg
