SKU: FYTB17TF-SKF

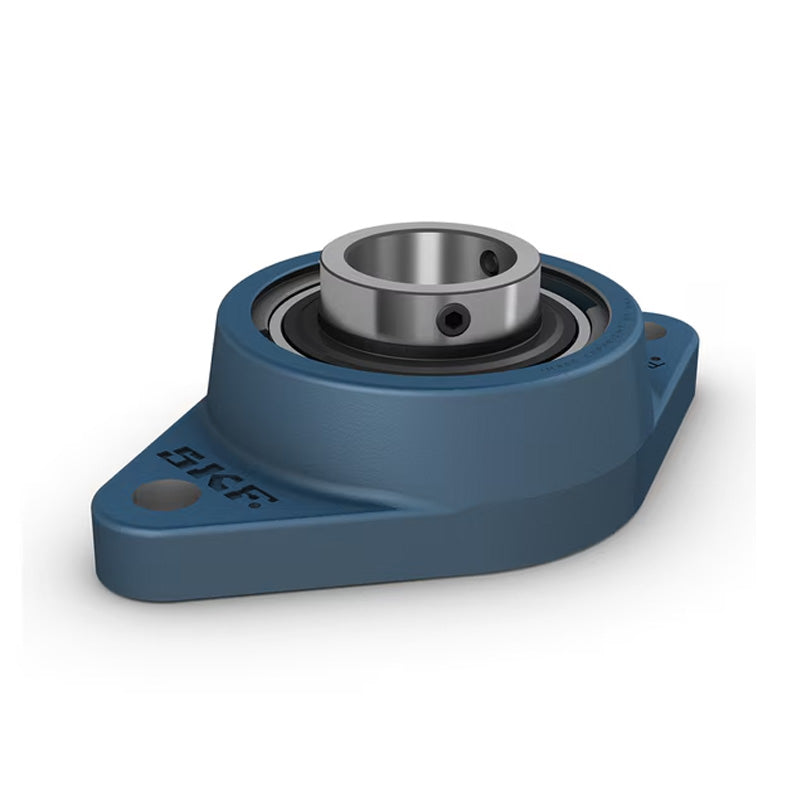

SKF FYTB17TF Oval Cast Housing with Grub Screw 17mm Insert
SKF FYTB17TF Oval Cast Housing with Grub Screw 17mm Insert
Regular price
$47.93
ex VAT
Regular price
Sale price
$47.93
ex VAT
In stock
Price Break
10+
$32.10
20+
$30.30
30+
$29.94
40+
$29.58
50+
$29.22
75+
$28.86
100+
$27.05
200+
$26.69
250+
$26.33
500+
$25.97
1000+
$25.25
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Style:
- FYTB
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| d | 17mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B | 27.4mm |
| Da | 50.8mm |
| H | 98.5mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 15.9mm |
| T | 32.9mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.39 kg |
