SKU: FYTB20TR-SKF

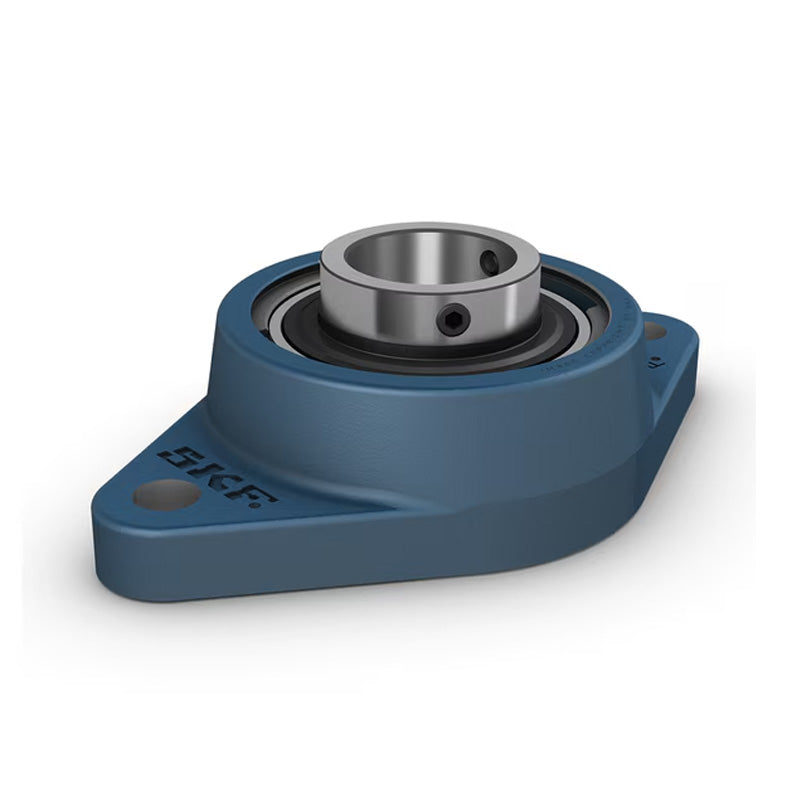

SKF FYTB20TR Oval Cast Housing with Grub Screw 20mm Insert
SKF FYTB20TR Oval Cast Housing with Grub Screw 20mm Insert
Regular price
$58.94
ex VAT
Regular price
Sale price
$58.94
ex VAT
In stock
Price Break
10+
$39.48
20+
$37.26
30+
$36.82
40+
$36.37
50+
$35.93
75+
$35.49
100+
$33.27
200+
$32.83
250+
$32.38
500+
$31.94
1000+
$31.05
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Style:
- FYTB
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 20mm |
|---|---|
| A1 | 29.5mm |
| A2 | 11mm |
| B | 31mm |
| Da | 50.8mm |
| H | 112mm |
| J | 90mm |
| L | 60.5mm |
| N | 12mm |
| G | 10mm |
| s1 | 18.3mm |
| T | 37.3mm |
| Static load Cr | 6.55 kN |
| Dynamic load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.28 kN |
| Limiting speed | 5000 rpm |
| A5 | 18.5mm |
| Weight | 0.5 kg |
| Compatible end cover closed | ECY204 |
