SKU: FYTB25FM-SKF

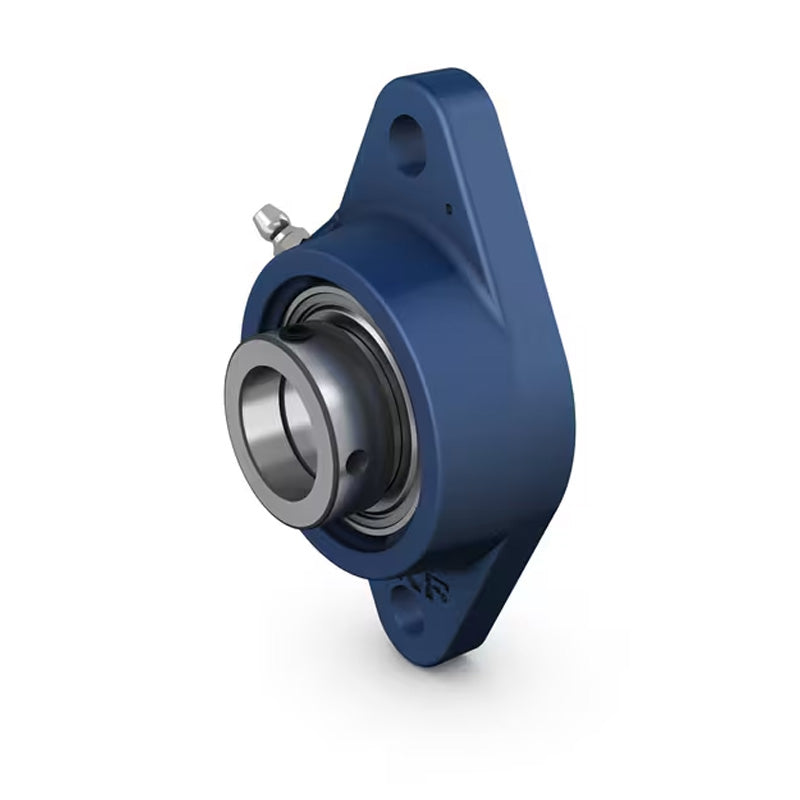

SKF FYTB25FM Oval Cast Housing with Grub Screw 25mm Insert
SKF FYTB25FM Oval Cast Housing with Grub Screw 25mm Insert
Regular price
$57.25
ex VAT
Regular price
Sale price
$57.25
ex VAT
In stock
Price Break
10+
$38.35
20+
$36.19
30+
$35.76
40+
$35.33
50+
$34.90
75+
$34.47
100+
$32.31
200+
$31.88
250+
$31.45
500+
$31.02
1000+
$30.16
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTB
- Bolt Hole Centres:
- 99mm
Technical
Technical
| d | 25mm |
|---|---|
| A1 | 30mm |
| A2 | 11mm |
| B1 | 31mm |
| Da | 63.5mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 23.5mm |
| T | 42.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.64 kg |
| Compatible end cover closed | ECY205 |
