SKU: FYTB40TR-SKF

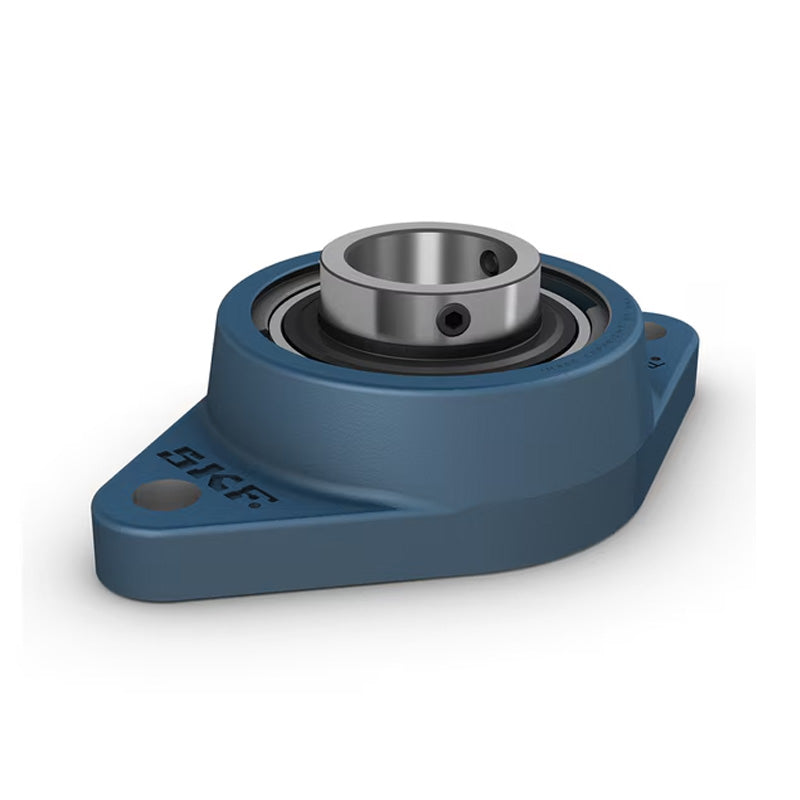

SKF FYTB40TR Oval Cast Housing with Grub Screw 40mm Insert
SKF FYTB40TR Oval Cast Housing with Grub Screw 40mm Insert
Regular price
$114.14
ex VAT
Regular price
Sale price
$114.14
ex VAT
In stock
Price Break
10+
$76.45
20+
$72.15
30+
$71.29
40+
$70.43
50+
$69.58
75+
$68.72
100+
$64.42
200+
$63.56
250+
$62.70
500+
$61.84
1000+
$60.13
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTB
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 88.9mm |
| H | 171.5mm |
| J | 143.5mm |
| L | 102mm |
| N | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 2800 rpm |
| A5 | 23.5mm |
| Weight | 1.65 kg |
| Compatible end cover closed | ECY208 |
