SKU: FYTB50WF-SKF

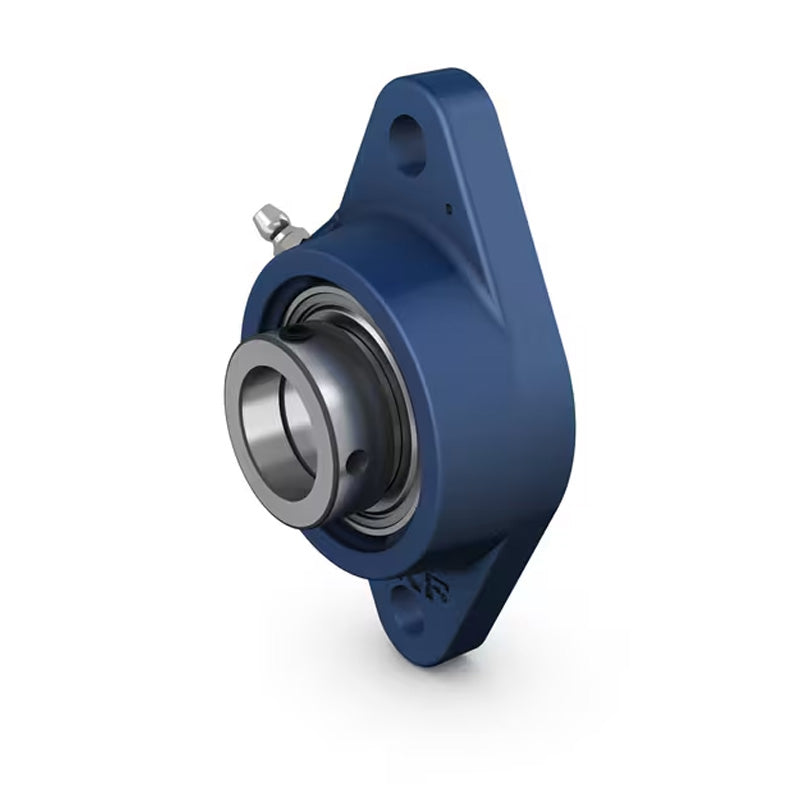

SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
SKF FYTB50WF Oval Cast Housing with Grub Screw 50mm Insert
Regular price
$149.62
ex VAT
Regular price
Sale price
$149.62
ex VAT
In stock
Price Break
10+
$100.22
20+
$94.59
30+
$93.47
40+
$92.34
50+
$91.21
75+
$90.09
100+
$84.46
200+
$83.33
250+
$82.20
500+
$81.08
1000+
$78.83
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYTB
- Bolt Hole Centres:
- 157mm

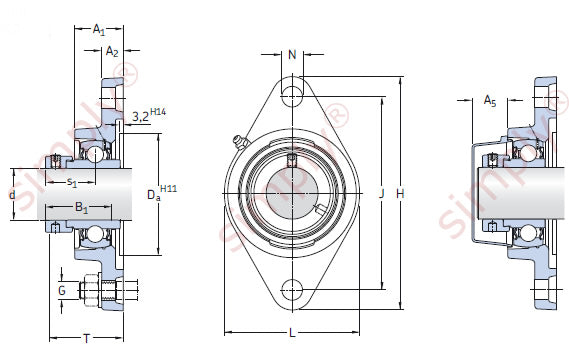

Technical
Technical
| d | 50mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B1 | 62.7mm |
| Da | 101.6mm |
| H | 189mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| G | 16mm |
| s1 | 38.1mm |
| T | 66.1mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| A5 | 29.5mm |
| Weight | 2.35 kg |
| Compatible end cover closed | ECY210 |
