SKU: FYTBK35TR-SKF

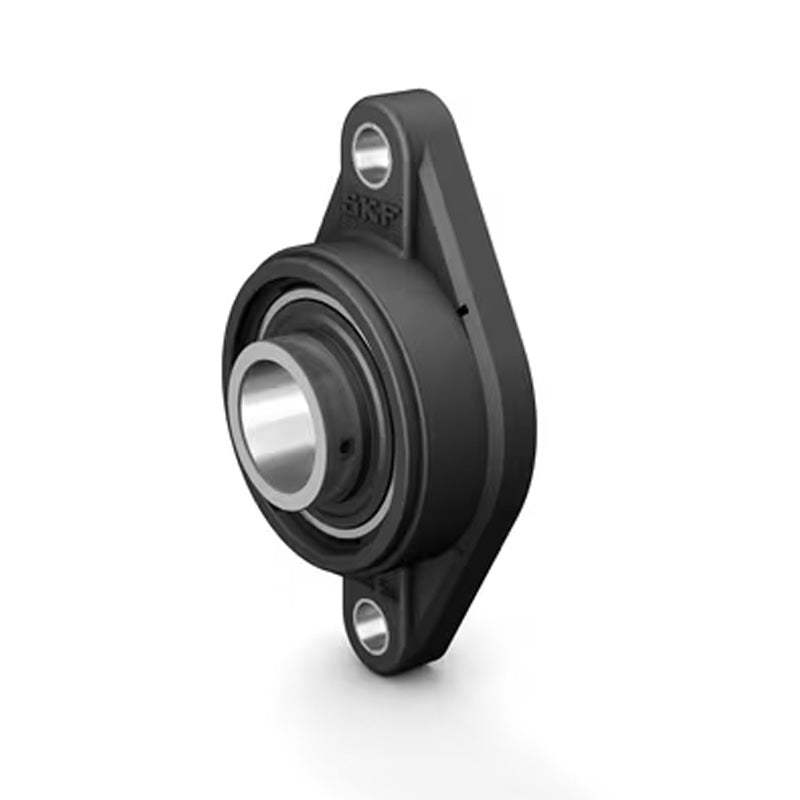

SKF FYTBK35TR Composite Oval Housing with Grub Screw 35mm Insert
SKF FYTBK35TR Composite Oval Housing with Grub Screw 35mm Insert
Regular price
$79.30
ex VAT
Regular price
Sale price
$79.30
ex VAT
In stock
Price Break
10+
$53.11
20+
$50.13
30+
$49.53
40+
$48.94
50+
$48.34
75+
$47.74
100+
$44.76
200+
$44.16
250+
$43.57
500+
$42.97
1000+
$41.78
Quantity
Couldn't load pickup availability
Description
Description
| SKF Oval Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has an oval flange and two bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYTBK
- Bolt Hole Centres:
- 130mm
Technical
Technical

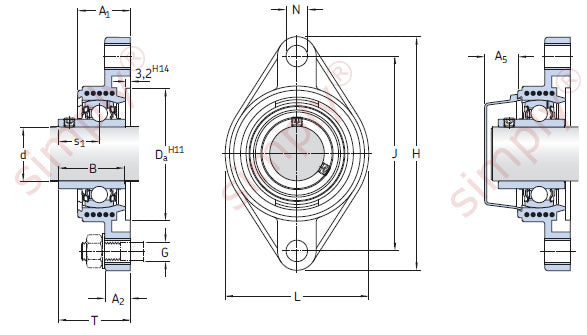

| d | 35mm |
|---|---|
| A1 | 35mm |
| A2 | 17mm |
| B | 42.9mm |
| Da | 88.9mm |
| H | 156mm |
| J | 130mm |
| L | 96mm |
| N | 14.5mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 3200 rpm |
| A5 | 22mm |
| Weight | 0.61 kg |
| Compatible end cover closed | ECY207 |
