SKU: FYTJ35TF-SKF

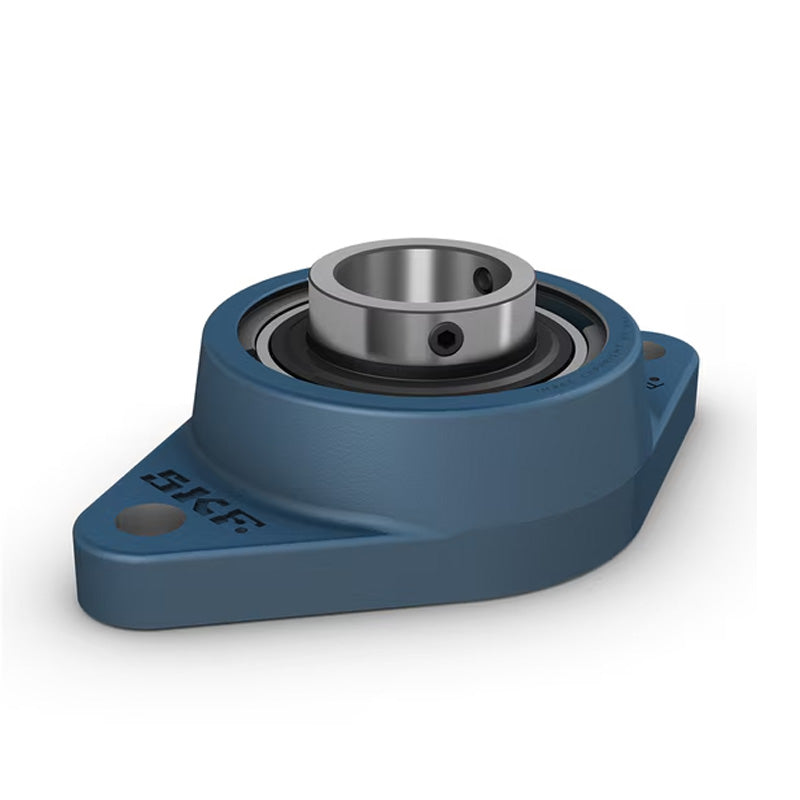

SKF FYTJ35TF Oval Cast Housing with Grub Screw 35mm Insert
SKF FYTJ35TF Oval Cast Housing with Grub Screw 35mm Insert
Regular price
$82.07
ex VAT
Regular price
Sale price
$82.07
ex VAT
In stock
Price Break
10+
$54.97
20+
$51.89
30+
$51.27
40+
$50.65
50+
$50.03
75+
$49.42
100+
$46.33
200+
$45.71
250+
$45.09
500+
$44.47
1000+
$43.24
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 35mm |
|---|---|
| A1 | 34mm |
| A2 | 16mm |
| B | 42.9mm |
| Da | 88.9mm |
| H | 161mm |
| J | 130mm |
| L | 96mm |
| N | 16mm |
| G | 14mm |
| s1 | 25.4mm |
| T | 44.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.15 kg |
