SKU: FYTJ45KF-SKF

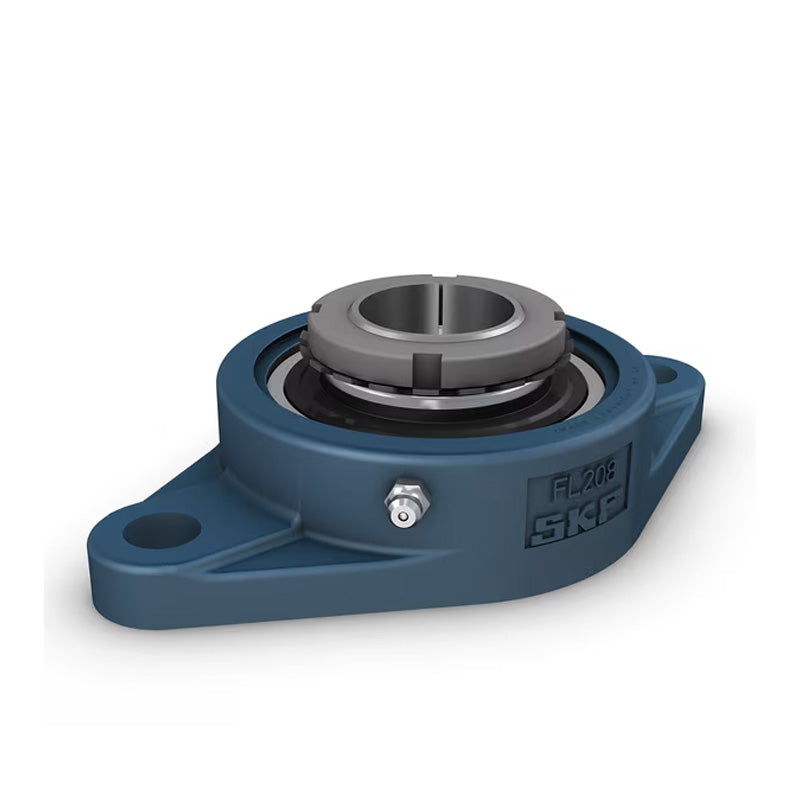

SKF FYTJ45KF Flanged Unit with an Oval Cast Housing with 40mm Insert
SKF FYTJ45KF Flanged Unit with an Oval Cast Housing with 40mm Insert
Regular price
$120.74
ex VAT
Regular price
Sale price
$120.74
ex VAT
In stock
Price Break
10+
$80.87
20+
$76.33
30+
$75.42
40+
$74.51
50+
$73.60
75+
$72.69
100+
$68.15
200+
$67.24
250+
$66.33
500+
$65.42
1000+
$63.61
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Adapter Sleeve: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 148mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 36mm |
| A2 | 18mm |
| B1 | 50mm |
| Da | 98.4mm |
| H | 188mm |
| J | 148mm |
| L | 108mm |
| N | 19mm |
| G | 16mm |
| s1 | 28.5mm |
| T | 50.5mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.2 kg |
