SKU: FYTJ50TF-SKF

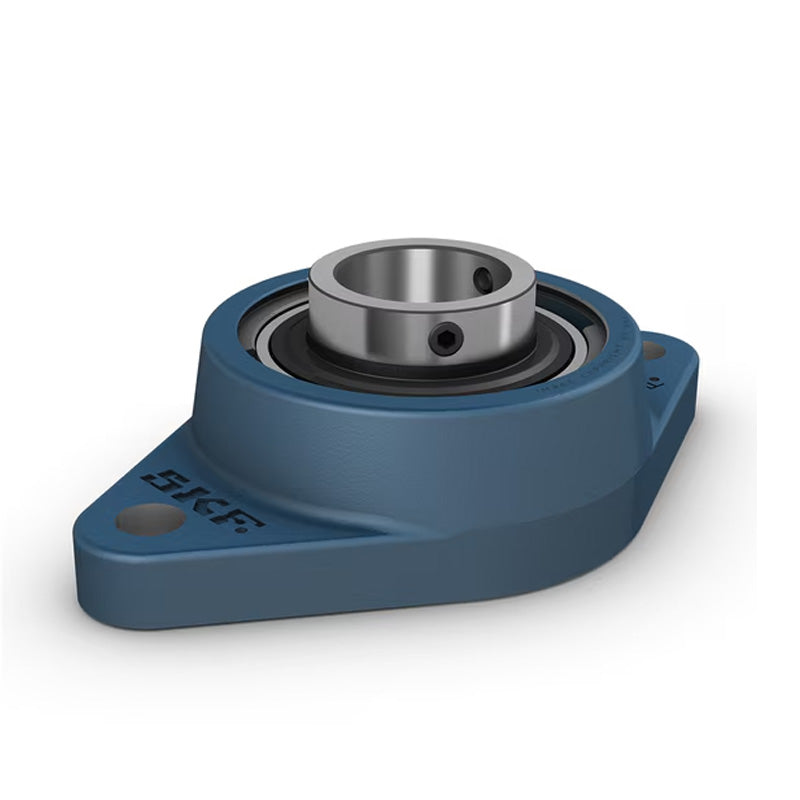

SKF FYTJ50TF Oval Cast Housing with Grub Screw 50mm Insert
SKF FYTJ50TF Oval Cast Housing with Grub Screw 50mm Insert
Regular price
$126.53
ex VAT
Regular price
Sale price
$126.53
ex VAT
In stock
Price Break
10+
$84.76
20+
$80.00
30+
$79.04
40+
$78.09
50+
$77.14
75+
$76.19
100+
$71.42
200+
$70.47
250+
$69.52
500+
$68.57
1000+
$66.66
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- FYTJ
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 50mm |
|---|---|
| A1 | 40mm |
| A2 | 18mm |
| B | 51.6mm |
| Da | 101.6mm |
| H | 195mm |
| J | 157mm |
| L | 115mm |
| N | 19mm |
| G | 16mm |
| s1 | 32.6mm |
| T | 54.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 3.1 kg |
