SKU: FYTWK25YTH-SKF

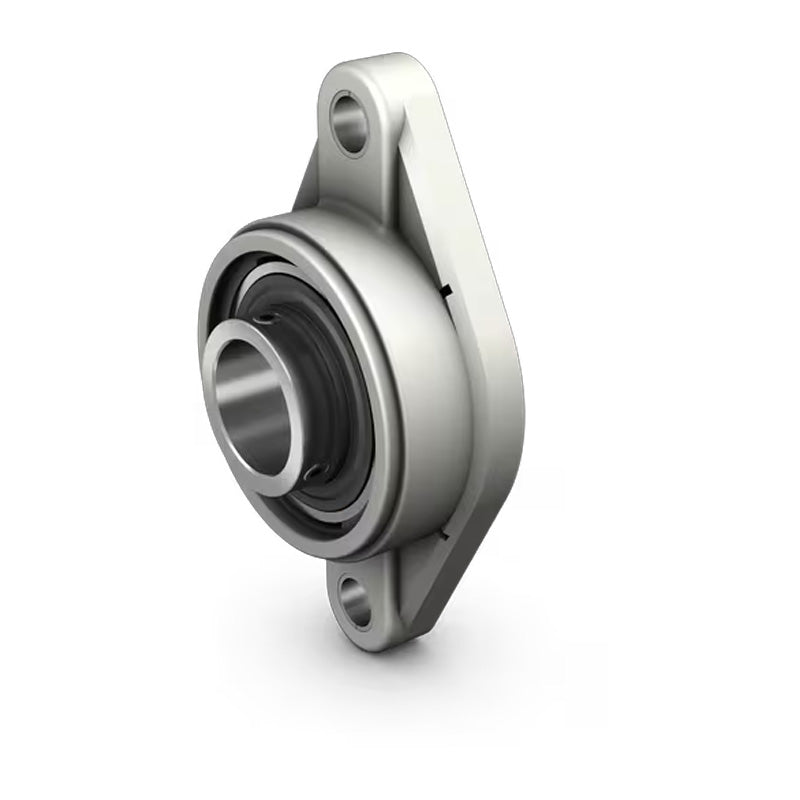

SKF FYTWK25YTH Composite Oval Housing with Grub Screw 25mm Insert
SKF FYTWK25YTH Composite Oval Housing with Grub Screw 25mm Insert
Regular price
$145.28
ex VAT
Regular price
Sale price
$145.28
ex VAT
In stock
Price Break
4+
$97.32
9+
$91.85
19+
$90.76
29+
$89.66
39+
$88.57
49+
$87.48
59+
$82.01
69+
$80.92
79+
$79.82
89+
$78.73
99+
$76.54
Quantity
Couldn't load pickup availability
Share this product
Description
Description
SKF Oval Flanged Y-bearing Units for the Food Industry: The housing of this unit is made of a chemical and corrosion resistant composite material which is designed to withstand frequent washdowns. The non-porous surface resists the accumulation of bacteria-forming food particles and the light-grey colour makes visual inspection easy.
Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels.
Benefits: Designed for the food industry, lubricated with food-grade grease, optimised for handling shock loads and high vibration levels.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- FYTWK
- Bolt Hole Centres:
- 99mm
Technical
Technical

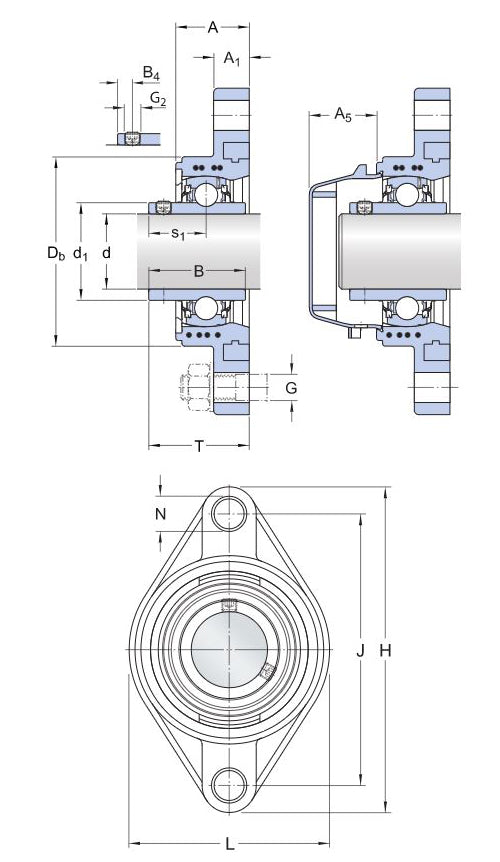

| d | 25mm |
|---|---|
| d1 | 33.74mm |
| A | 30mm |
| A1 | 15mm |
| A5 | 26mm |
| B | 34.1mm |
| B4 | 5mm |
| Db | 65mm |
| H | 124mm |
| J | 99mm |
| L | 70mm |
| N | 12.3mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Basic Dynamic Load Rating | 11.9 kN |
| Basic Static Load Rating | 7.8 kN |
| Fatigue load limit | 0.335 kN |
| Limiting Speed | 4300 r/min |
| Weight | 0.3 kg |
