SKU: G1100-KRR-B-AS2/V-INA

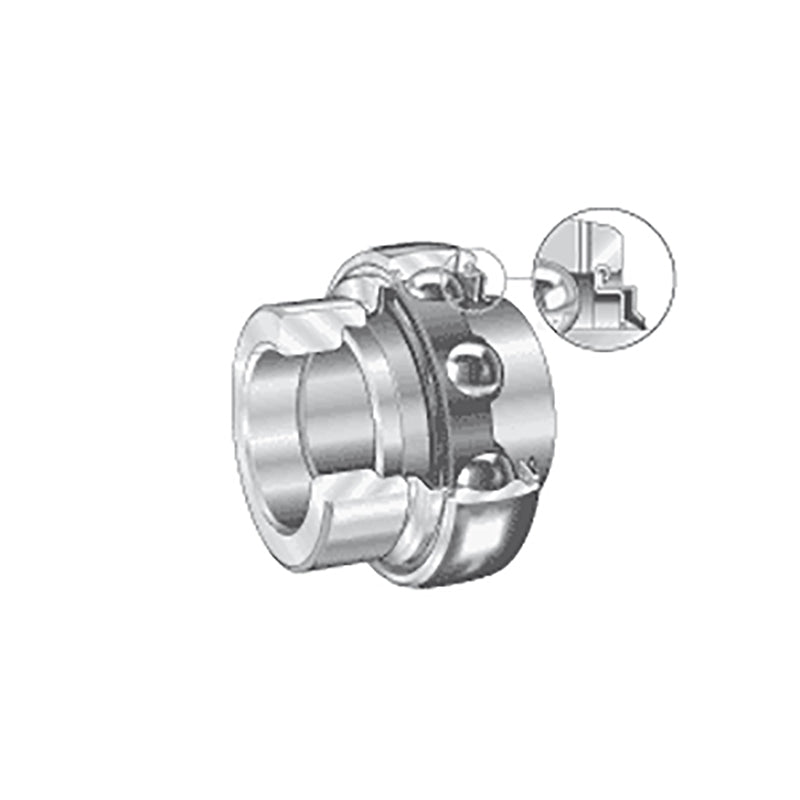

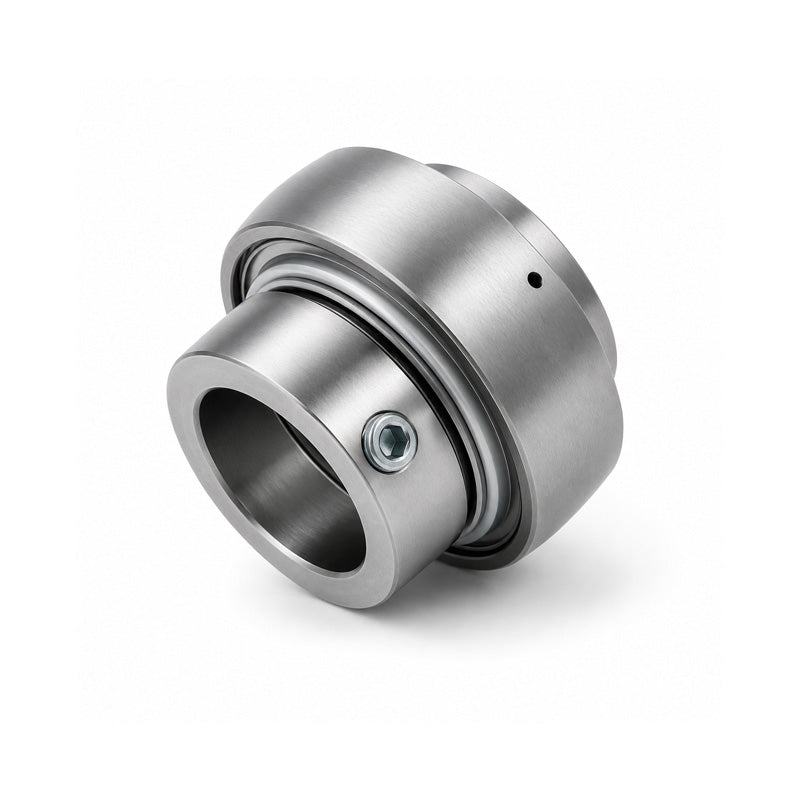

INA G1100KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25.4x52x44.5mm
INA G1100KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 25.4x52x44.5mm
Regular price
$40.22
ex VAT
Regular price
Sale price
$40.22
ex VAT
In stock
Price Break
3+
$26.94
5+
$25.43
10+
$25.12
15+
$24.82
20+
$24.52
30+
$24.22
40+
$22.70
50+
$22.40
60+
$22.10
75+
$21.79
100+
$21.19
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
INA G..KRR-B-AS2/V Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Width:
- 44.5mm
Technical
Technical
| d | 1 inch |
|---|---|
| d | 25.4mm |
| DSP | 2.0472 inch |
| DSP | 52mm |
| B1 | 1.7520 inch |
| B1 | 44.5mm |
| B | 34.9mm |
| C | 15mm |
| C2 | 16.5mm |
| Ca | 3.9mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| d3 max | 37.5mm |
| S | 17.5mm |
| W | 1/8 inch |
| m | 0.232 kg |
| Dynamic load Cr | 14900 N |
| Static load Cor | 7800 N |
| Fatigue limit load Cur | 395 N |
| fo | 13.8 |
