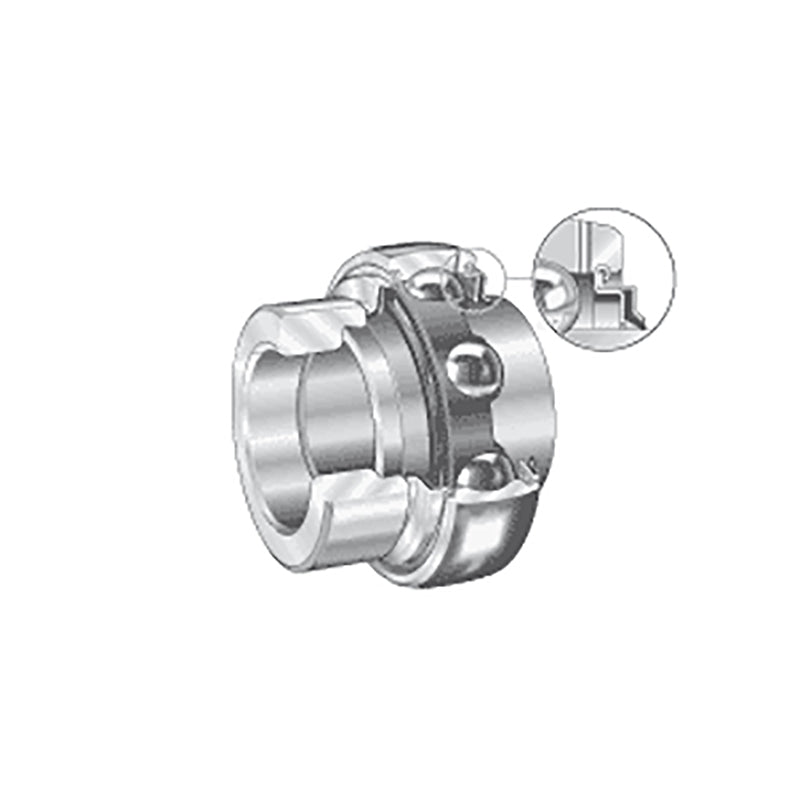

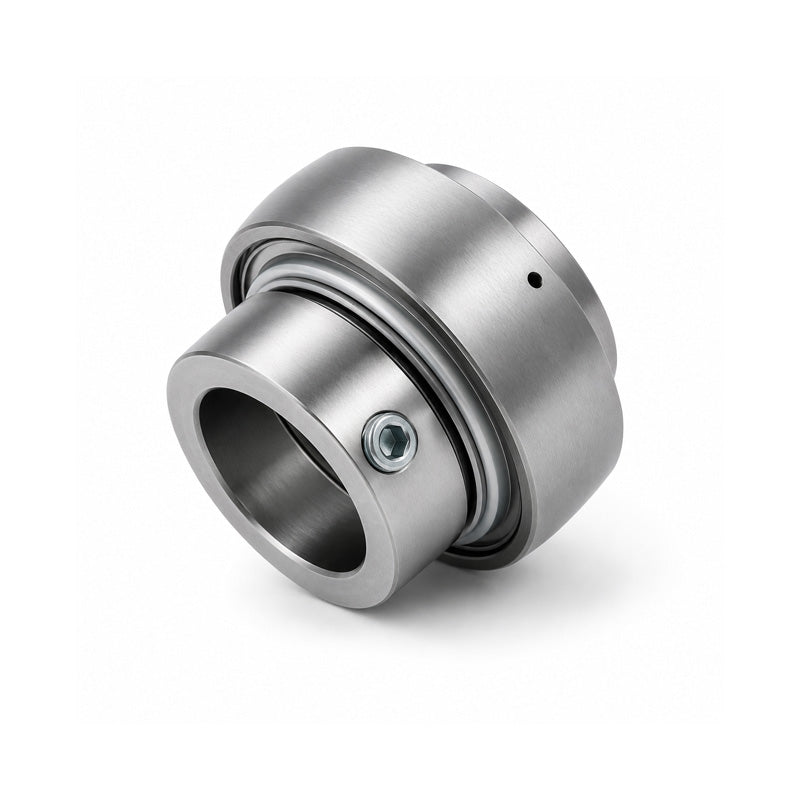

• INA G1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 31.75x72x51.3mm
  • INA
1 2

SKU: G1104-KRR-B-AS2/V-INA

INA G1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 31.75x72x51.3mm

INA G1104206KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 31.75x72x51.3mm
$49.20 ex VAT
$49.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $32.96
5+ $31.11
10+ $30.73
15+ $30.36
20+ $29.99
30+ $29.62
40+ $27.77
50+ $27.40
60+ $27.03
75+ $26.66
100+ $25.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Outside Diameter:
72mm
Width:
51.3mm
Technical
d 1-1/4 inch
d 31.75mm
DSP 2.8346 inch
DSP 72mm
B1 2.0197 inch
B1 51.3mm
B 37.7mm
C 19mm
C2 22.5mm
Ca 5.7mm
D1 60.3mm
d1 46.8mm
d3 max 51mm
S 18.8mm
W 5/32 inch
m 0.649 kg
Dynamic load Cr 27500 N
Static load Cor 15300 N
Fatigue limit load Cur 770 N
fo 13.8
