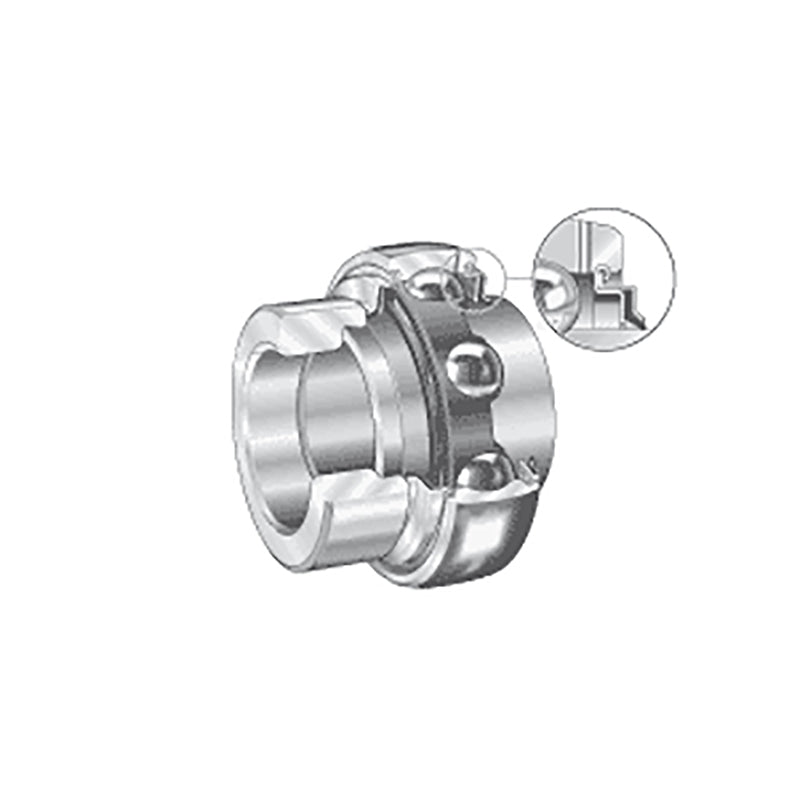

• INA G1110KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 41.28x85x56.5mm
  • INA
1 2

SKU: G1110-KRR-B-AS2/V-INA

INA G1110KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 41.28x85x56.5mm

INA G1110KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Eccentric Collar 41.28x85x56.5mm
$82.21 ex VAT
$82.21 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.06
5+ $51.97
10+ $51.35
15+ $50.73
20+ $50.11
30+ $49.50
40+ $46.40
50+ $45.78
60+ $45.17
75+ $44.55
100+ $43.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
41.28mm = 1.625 (1-5/8) inch
Outside Diameter:
85mm
Width:
56.5mm
Technical
d 1-5/8 inch
d 41.28mm
DSP 3.3465 inch
DSP 85mm
B1 2.2244 inch
B1 56.5mm
B 42.9mm
C 22mm
C2 25.7mm
Ca 6.4mm
D1 72.3mm
d1 57.9mm
d3 max 63mm
S 21.4mm
W 3/16 inch
m 0.9 kg
Dynamic load Cr 34500 N
Static load Cor 20400 N
Fatigue limit load Cur 1030 N
fo 14.3
