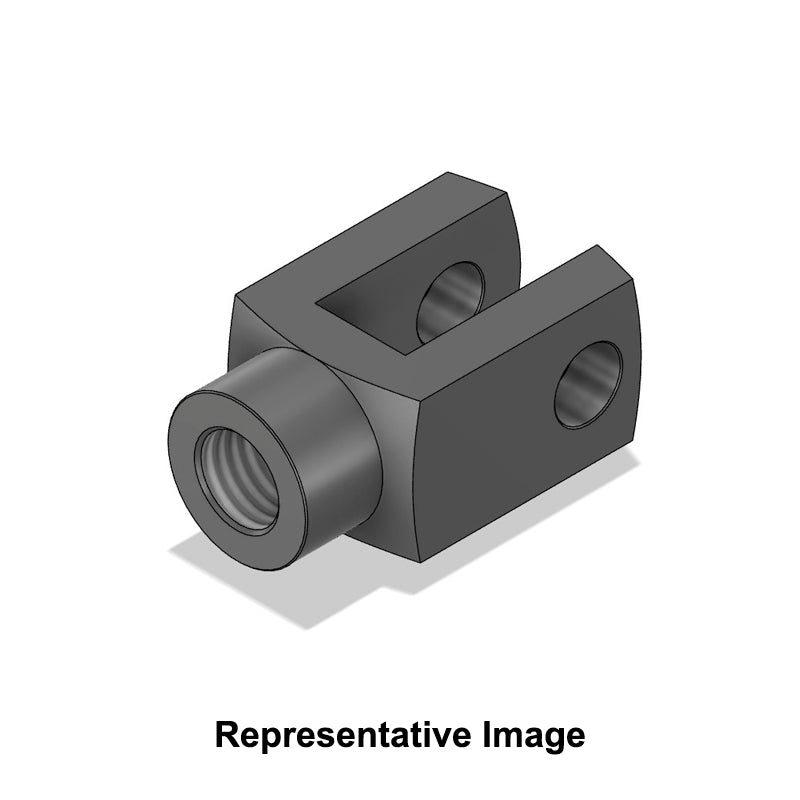

Chiavette G8x16 CNOMO Right Hand Female Steel Clevis 8mm Bore 16mm Base / Bore Center M10x1.5 Thread - Allow 7-10 Days

Chiavette CNOMO Steel Clevis: A Clevis (also known as a yoke) is a versatile mechanical linkage component commonly used in industrial and mechanical applications. Clevises are paired with a clevis pin (available separately) that fits through the holes at the end of the clevis prongs. Made according to CNOMO 060714 and crafted from automatic steel (11SMnPb30), these clevises feature a forked end with holes for secure attachment to rods, cables, or other hardware, while the opposite end has a female thread for connection to machinery or equipment.
Note: These products are certified to CNOMO standards. These standards cover various aspects of mechanical engineering, including dimensions, tolerances, materials, and testing methods, aiming to promote uniformity, interoperability, and quality in mechanical designs and products. CNOMO standards are widely recognized in many countries and industries around the world, contributing to international harmonization and standardization efforts in mechanical engineering.

Brand / Quality:

Chiavette - High Quality

Thread Size:

M10x1.5

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

8mm

Length:

45mm

Style:

CNOMO
