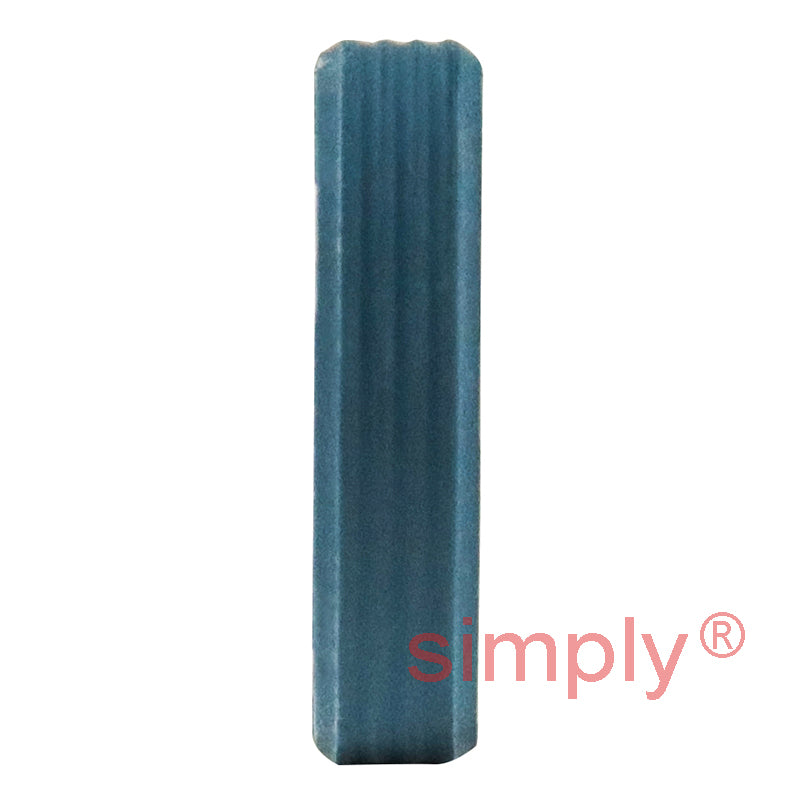

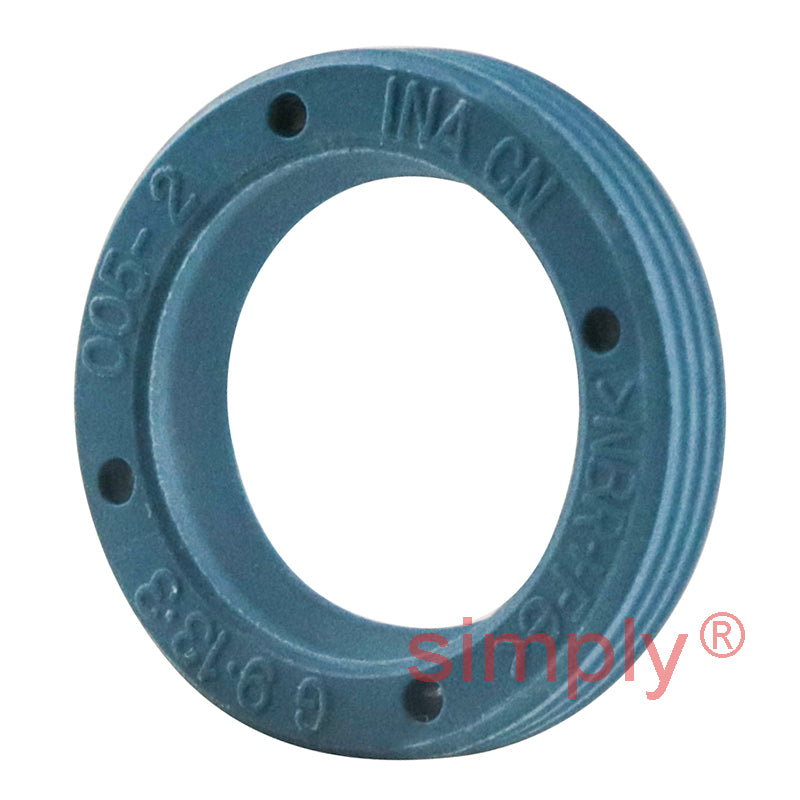

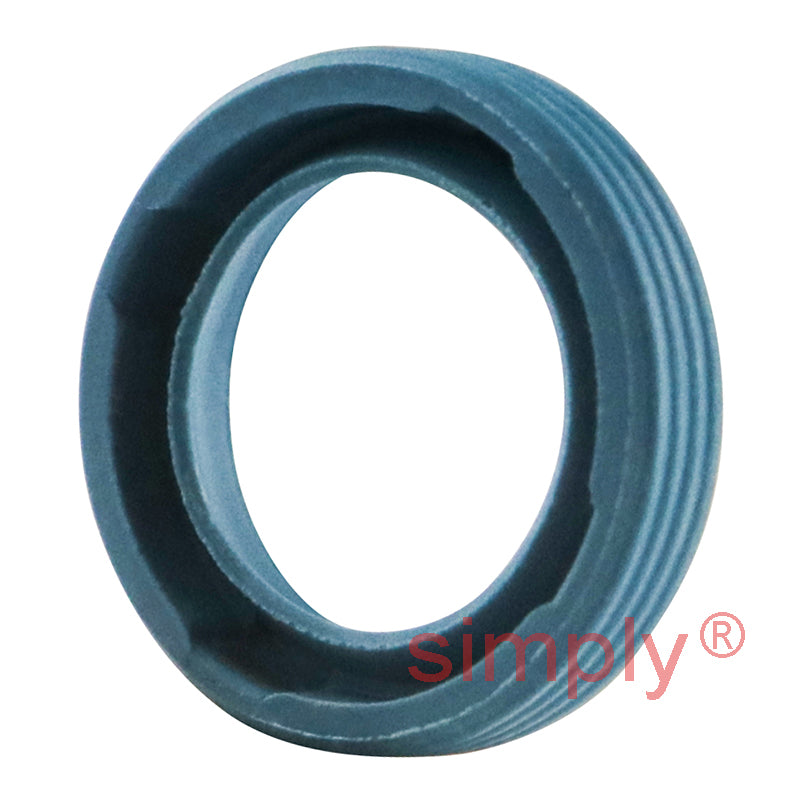

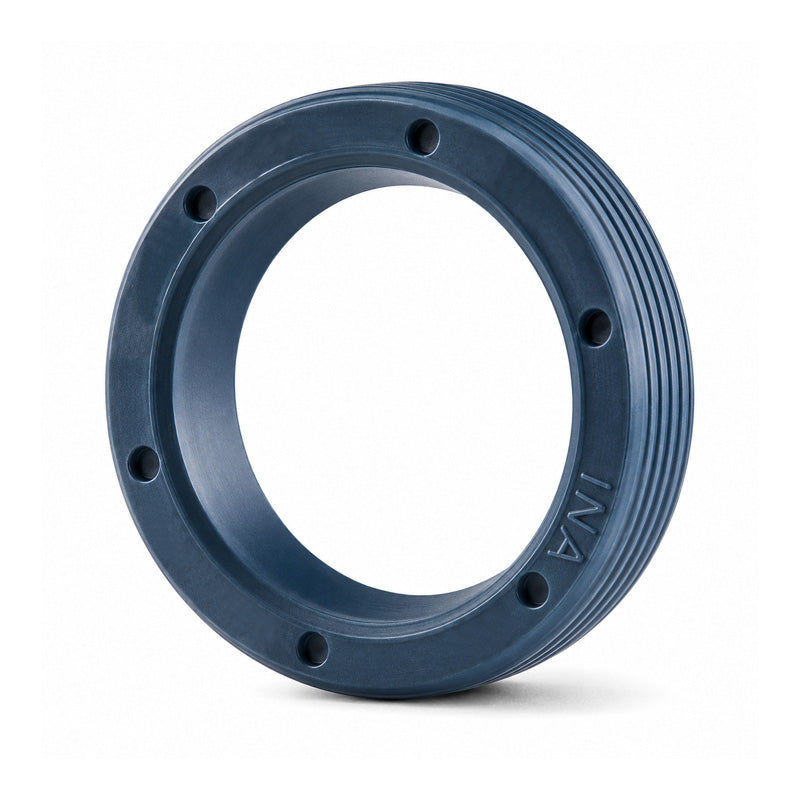

• INA G9X13X3B Single Lip Nitrile Rubber Oil Seal 9x13x3mm
  • INA
1 2

SKU: G9X13X3B-INA

INA G9X13X3B Single Lip Nitrile Rubber Oil Seal 9x13x3mm

INA G9X13X3B Single Lip Nitrile Rubber Oil Seal 9x13x3mm
$9.26 ex VAT
$9.26 ex VAT
Sale Sold out

Equivalent to: G9X13X3B

In stock

Price Break
4+ $6.20
9+ $5.85
19+ $5.79
29+ $5.72
39+ $5.65
49+ $5.58
59+ $5.23
69+ $5.16
79+ $5.09
89+ $5.02
99+ $4.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Nitrile Single Lip Sealing Rings: Designed as contact seals, these sealing rings protect the bearing position against contamination, spray water and the excessive loss of grease. Sealing rings are matched to the small radial dimensions of needle roller bearings. They are very easy to fit, as they are simply pressed into the housing bore. Sealing rings allow circumferential speeds at the seal lip of up to 10 m/s depending on the surface quality of the shaft. This sealing ring is made from synthetic NBR elastomer (coloured green). They are suitable for shaft diameters from 8mm to 80mm and have a rubber-encased steel reinforcement for stiffening purposes with a wave-shaped rubber profile. This provides good sealing on the outside diameter and reduces the forces required for fitting. Suitable for operating temperatures from -30 to +110 deg C.
Benefits: Improved sealing on the outside diameter, reduced force required for fitting.
Brand / Quality:
INA - High Quality
Inside Diameter:
9mm
Outside Diameter:
13mm
Width:
3mm
Seals / Shields:
Nitrile
Style:
G
Technical
Shaft Size not Inside Diameter (d) 9mm
Outside Diameter (D) 13mm
Width (b) 3mm
