SKU: GAC110F-SKF

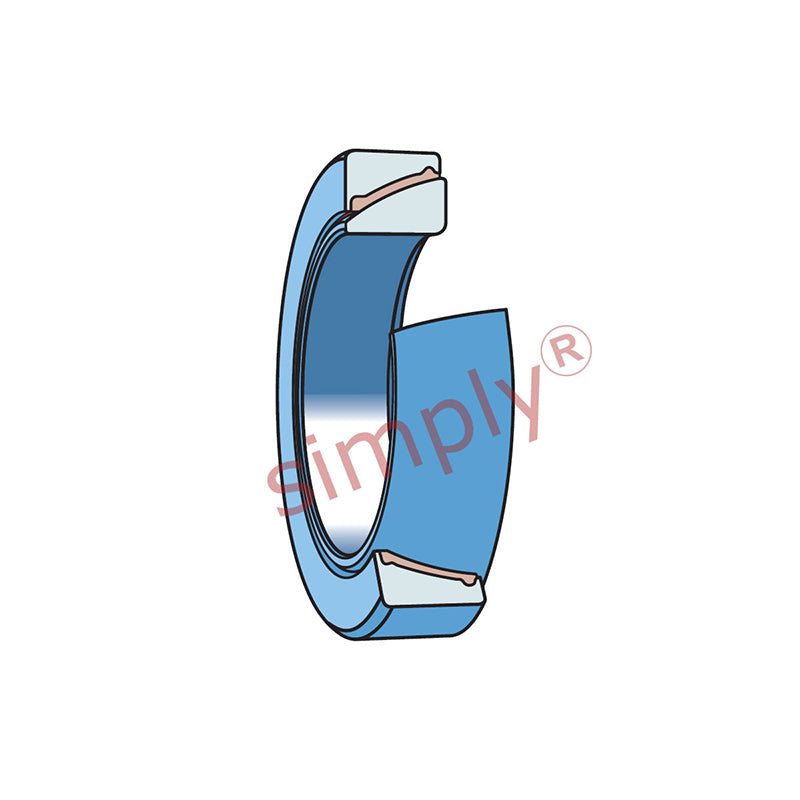

SKF GAC110F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 110x170x38mm

Name: SKF GAC110F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 110x170x38mm
Brand: SKF
SKU: GAC110F-SKF
Price: 1952.61 USD
Availability: InStock

$1,952.61 ex VAT

Sale Sold out

Equivalent to: GE110SX GAC110T

In stock

Price Break

10+ $1,307.92

19+ $1,234.44

29+ $1,219.74

39+ $1,205.05

49+ $1,190.35

74+ $1,175.66

99+ $1,102.18

199+ $1,087.48

249+ $1,072.79

499+ $1,058.09

999+ $1,028.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 110mm
Outside Diameter:: 170mm
Width:: 38mm

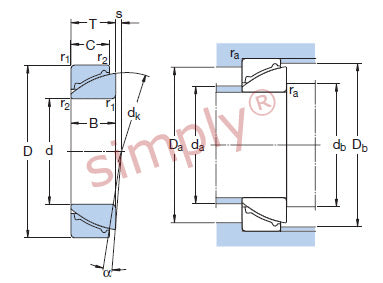

Technical

d	110mm
D	170mm
T	38mm
Angle	2 degrees
Dynamic load	200 kN
Static load	320 kN
dk	155mm
B	38mm
C	34mm
r1 min	2.5mm
r2 min	0.6mm
s	13mm
da max	124mm
db max	145mm
Da min	130mm
Db min	156mm
ra max	2.5mm
Weight	3.7 kg
