SKU: GAC120F-SKF

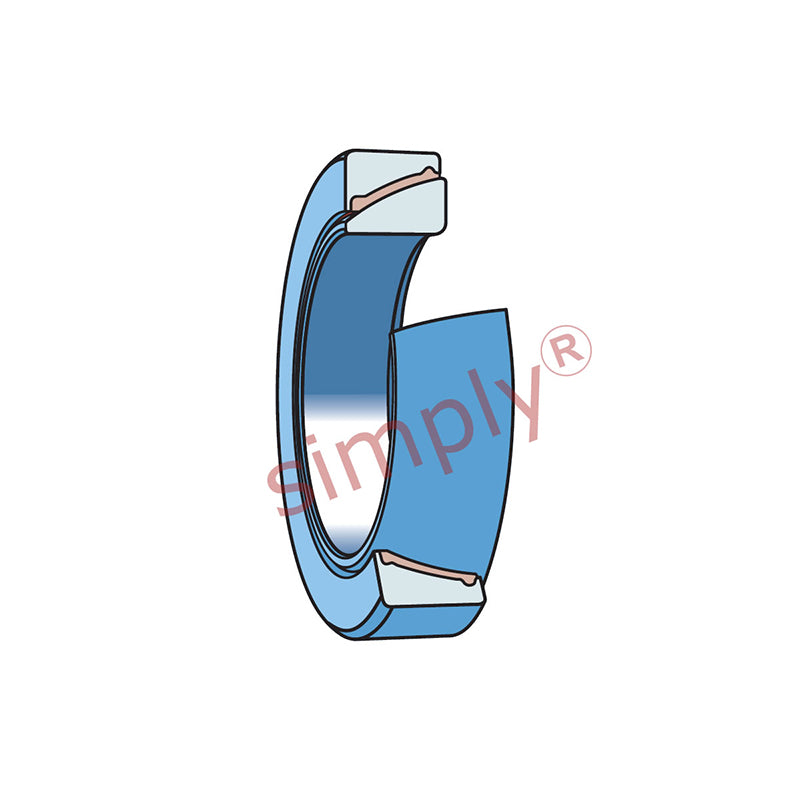

SKF GAC120F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 120x180x38mm

Name: SKF GAC120F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 120x180x38mm
Brand: SKF
SKU: GAC120F-SKF
Price: 1091.06 USD
Availability: InStock

$1,091.06 ex VAT

Sale Sold out

Equivalent to: GE120SX GAC120T

In stock

Price Break

10+ $730.83

19+ $689.77

29+ $681.56

39+ $673.35

49+ $665.13

74+ $656.92

99+ $615.86

199+ $607.65

249+ $599.44

499+ $591.23

999+ $574.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 180mm
Width:: 38mm

Technical

d	120mm
D	180mm
T	38mm
Angle	1.5 degrees
Dynamic load	240 kN
Static load	380 kN
dk	168mm
B	38mm
C	37mm
r1 min	2.5mm
r2 min	0.6mm
s	14.5mm
da max	134mm
db max	155mm
Da min	140mm
Db min	169mm
ra max	2.5mm
Weight	4 kg
