SKU: GAC30F-SKF

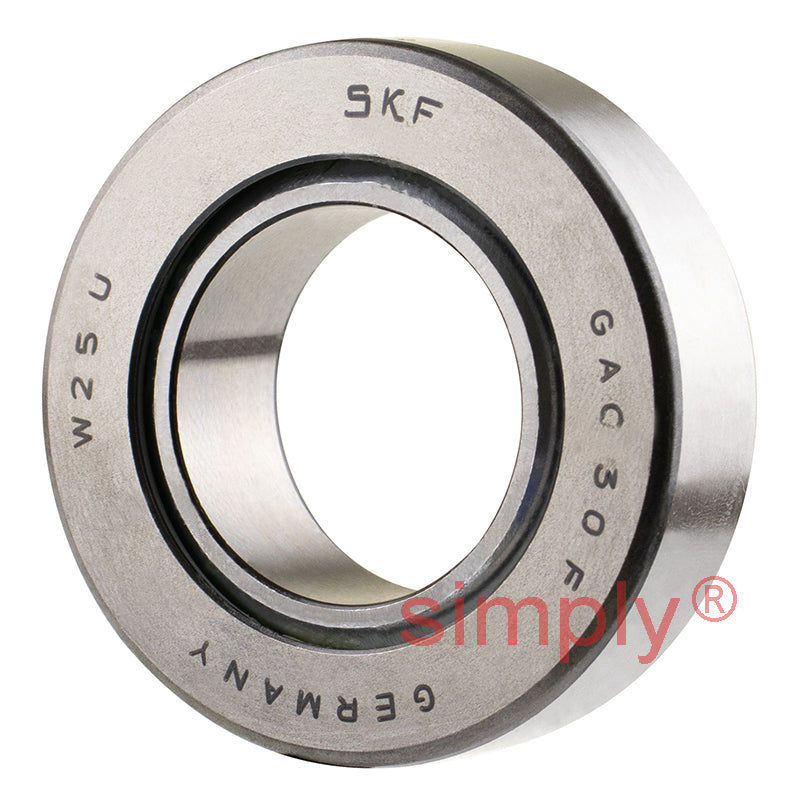

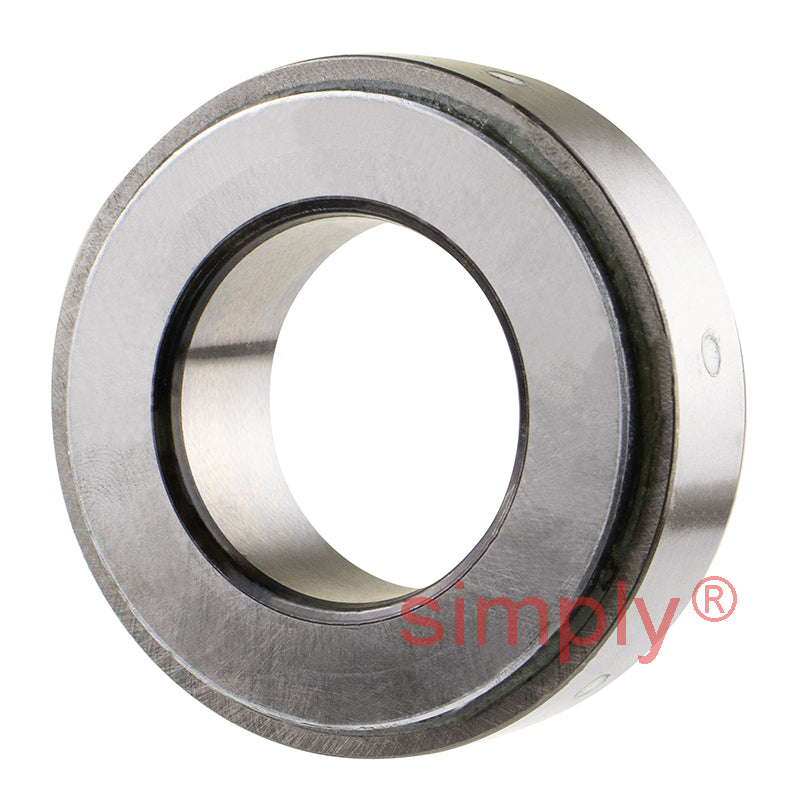

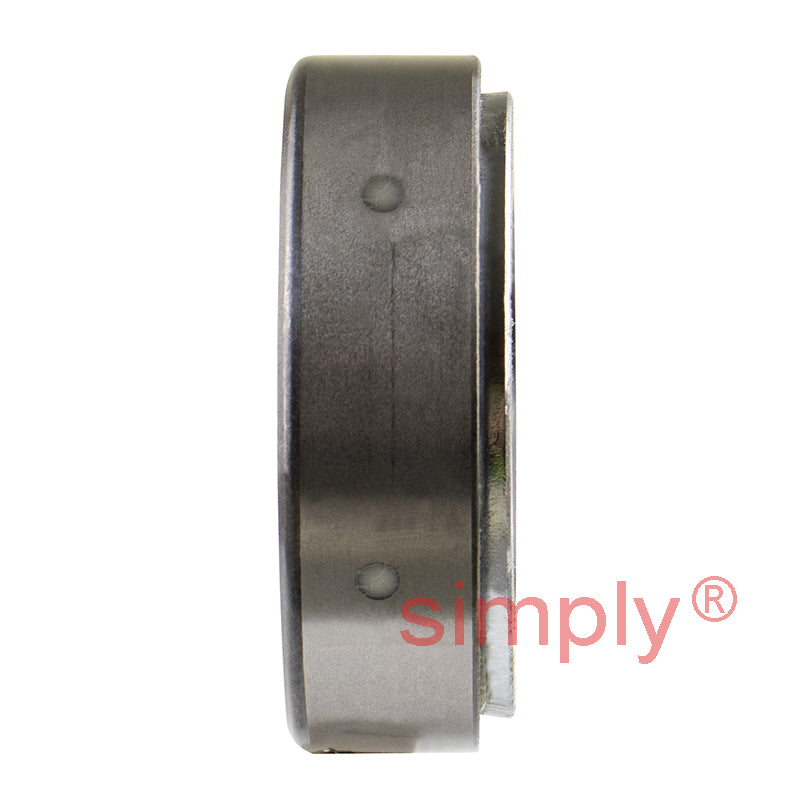

SKF GAC30F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 30x55x17mm
SKF GAC30F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 30x55x17mm
Regular price
$105.06
ex VAT
Regular price
Sale price
$105.06
ex VAT
Equivalent to: GE30SX GAC30T
In stock
Price Break
10+
$70.37
19+
$66.42
29+
$65.63
39+
$64.84
49+
$64.05
74+
$63.25
99+
$59.30
199+
$58.51
249+
$57.72
499+
$56.93
999+
$55.35
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 17mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| T | 17mm |
| Angle | 3.5 degrees |
| Dynamic load | 27 kN |
| Static load | 43 kN |
| dk | 49.5mm |
| B | 17mm |
| C | 15mm |
| r1 min | 1mm |
| r2 min | 0.3mm |
| s | 1.3mm |
| da max | 35mm |
| db max | 45mm |
| Da min | 39mm |
| Db min | 50.5mm |
| ra max | 1mm |
| Weight | 0.21 kg |
