SKU: GAC35F-SKF

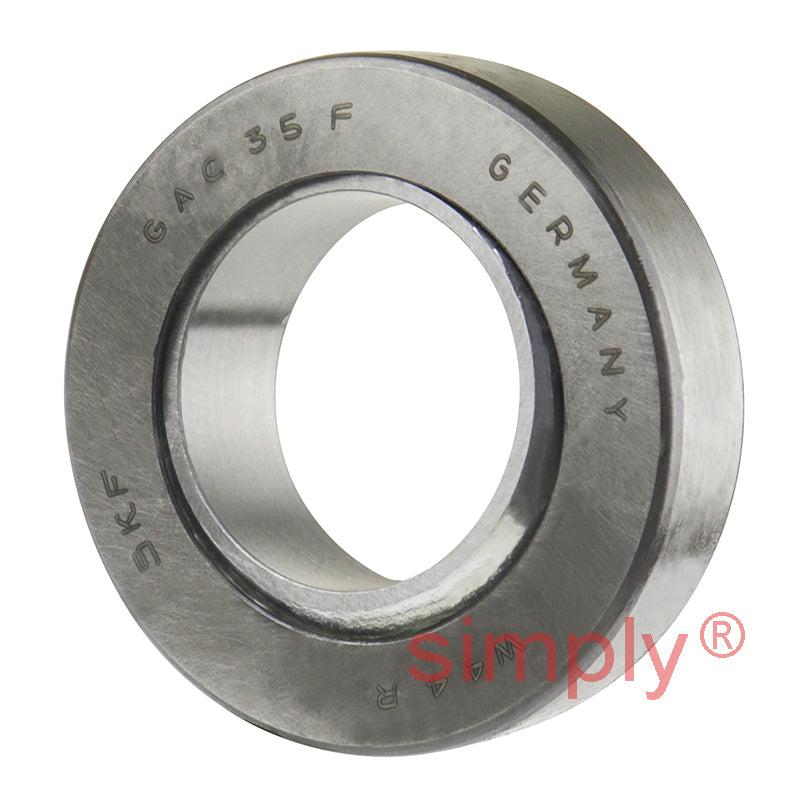

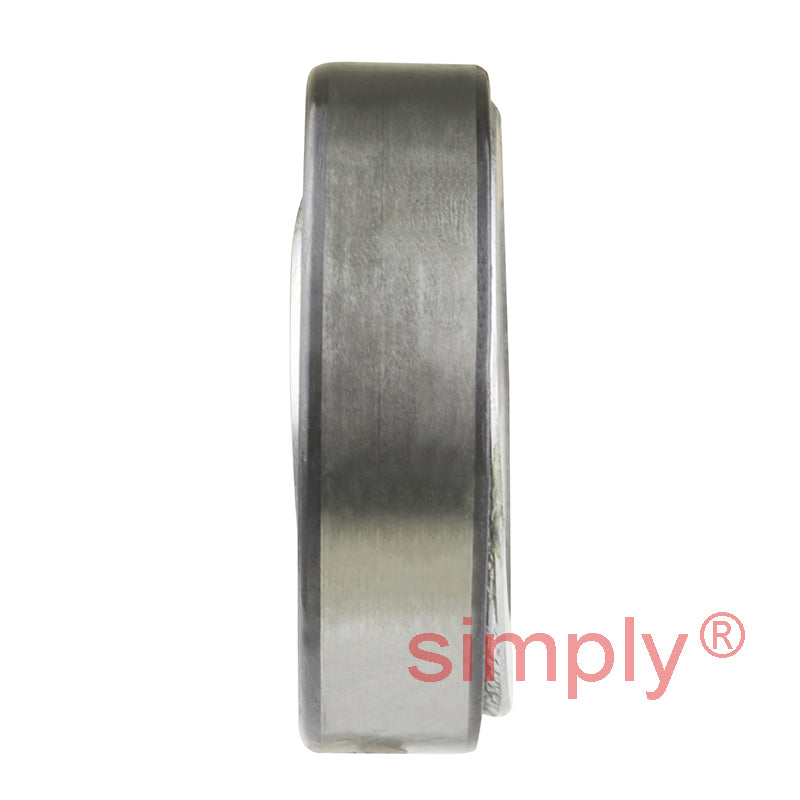

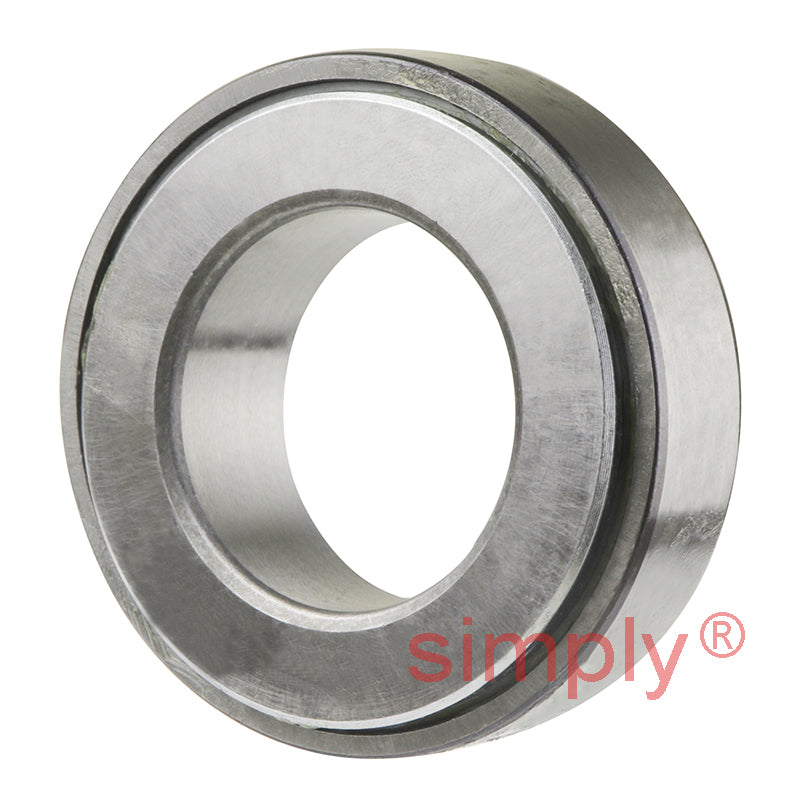

SKF GAC35F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 35x62x18mm
SKF GAC35F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 35x62x18mm
Regular price
$107.53
ex VAT
Regular price
Sale price
$107.53
ex VAT
Equivalent to: GE35SX GAC35T
In stock
Price Break
10+
$72.03
19+
$67.98
29+
$67.17
39+
$66.36
49+
$65.55
74+
$64.74
99+
$60.70
199+
$59.89
249+
$59.08
499+
$58.27
999+
$56.65
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 18mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| T | 18mm |
| Angle | 3.5 degrees |
| Dynamic load | 32.5 kN |
| Static load | 52 kN |
| dk | 55.5mm |
| B | 18mm |
| C | 16mm |
| r1 min | 1mm |
| r2 min | 0.3mm |
| s | 2.1mm |
| da max | 40mm |
| db max | 50mm |
| Da min | 45mm |
| Db min | 56.5mm |
| ra max | 1mm |
| Weight | 0.27 kg |
