SKU: GAC45F-SKF

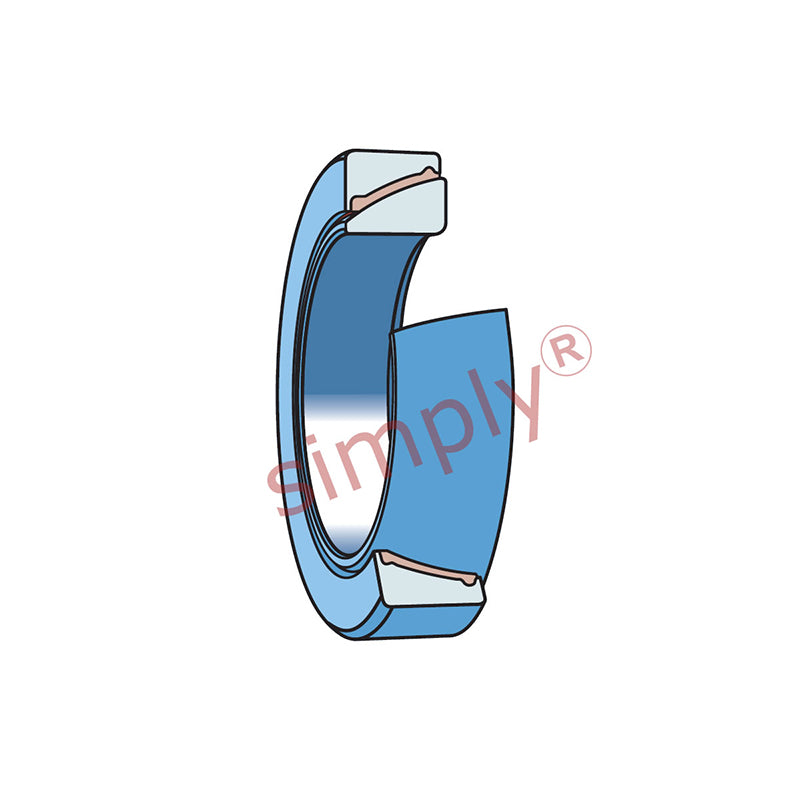

SKF GAC45F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 45x75x20mm
SKF GAC45F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 45x75x20mm
Regular price
$199.29
ex VAT
Regular price
Sale price
$199.29
ex VAT
Equivalent to: GE45SX GAC45T
In stock
Price Break
10+
$133.49
19+
$125.99
29+
$124.49
39+
$122.99
49+
$121.49
74+
$119.99
99+
$112.49
199+
$110.99
249+
$109.49
499+
$107.99
999+
$104.99
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 20mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 75mm |
| T | 20mm |
| Angle | 3 degrees |
| Dynamic load | 45.5 kN |
| Static load | 73.5 kN |
| dk | 68.5mm |
| B | 20mm |
| C | 18mm |
| r1 min | 1mm |
| r2 min | 0.3mm |
| s | 3.5mm |
| da max | 51mm |
| db max | 60mm |
| Da min | 55mm |
| Db min | 69mm |
| ra max | 1mm |
| Weight | 0.42 kg |
