SKU: GAC50F-SKF

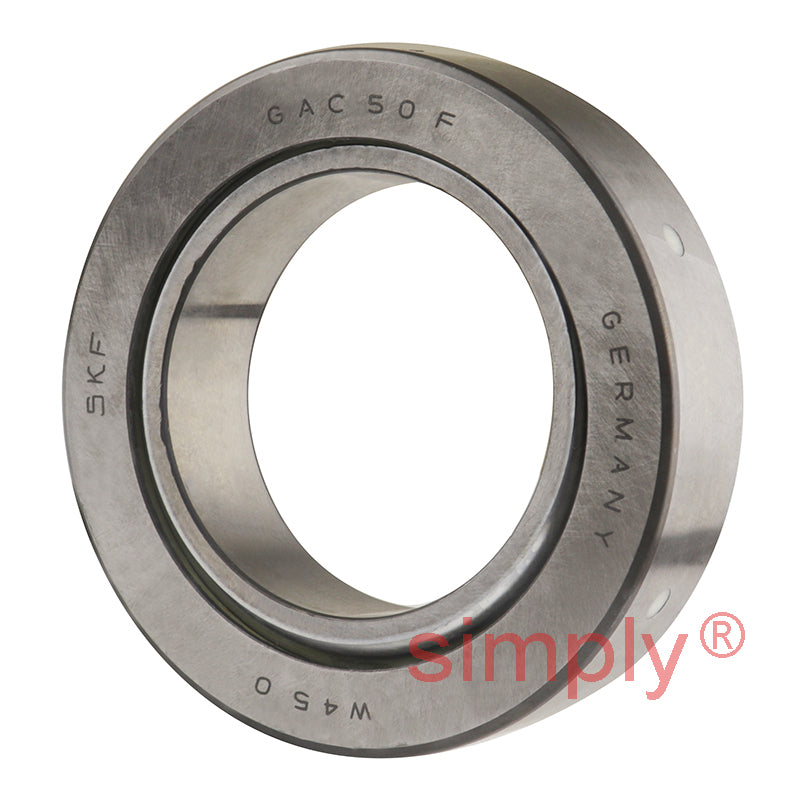

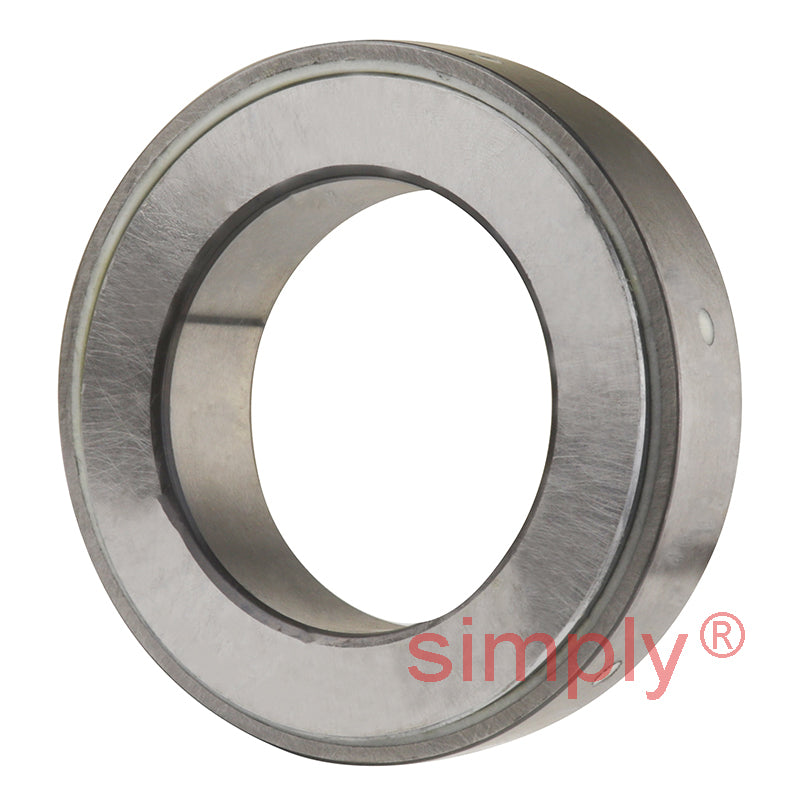

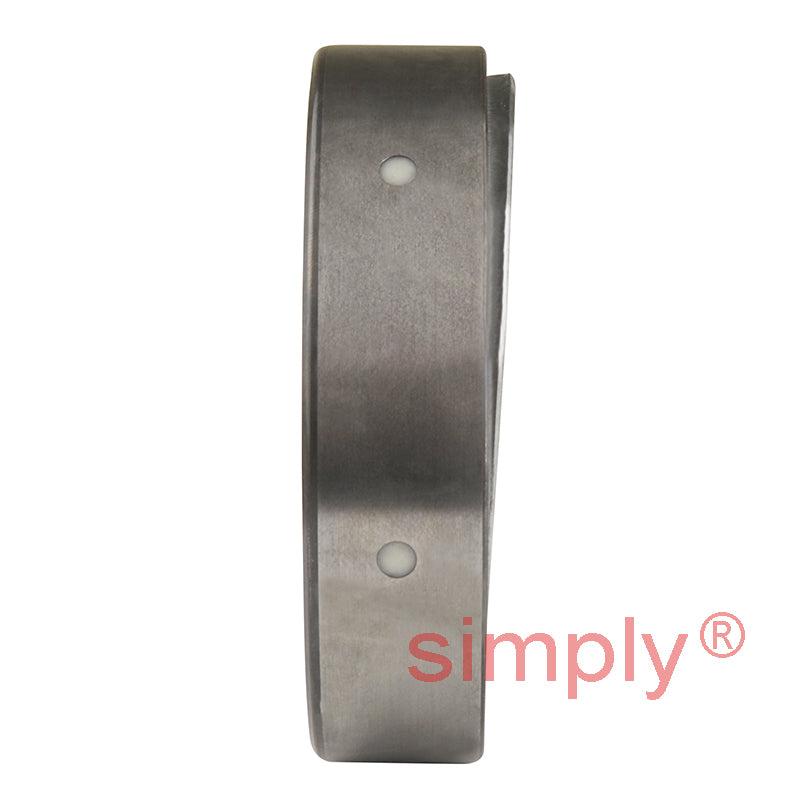

SKF GAC50F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 50x80x20mm
SKF GAC50F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 50x80x20mm
Regular price
$142.08
ex VAT
Regular price
Sale price
$142.08
ex VAT
Equivalent to: GE50SX GAC50T
In stock
Price Break
10+
$95.17
19+
$89.82
29+
$88.75
39+
$87.69
49+
$86.62
74+
$85.55
99+
$80.20
199+
$79.13
249+
$78.06
499+
$76.99
999+
$74.85
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 20mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| T | 20mm |
| Angle | 3 degrees |
| Dynamic load | 53 kN |
| Static load | 85 kN |
| dk | 74mm |
| B | 20mm |
| C | 19mm |
| r1 min | 1mm |
| r2 min | 0.3mm |
| s | 4.3mm |
| da max | 56mm |
| db max | 67mm |
| Da min | 60mm |
| Db min | 74.5mm |
| ra max | 1mm |
| Weight | 0.46 kg |
