SKU: GAC60F-SKF

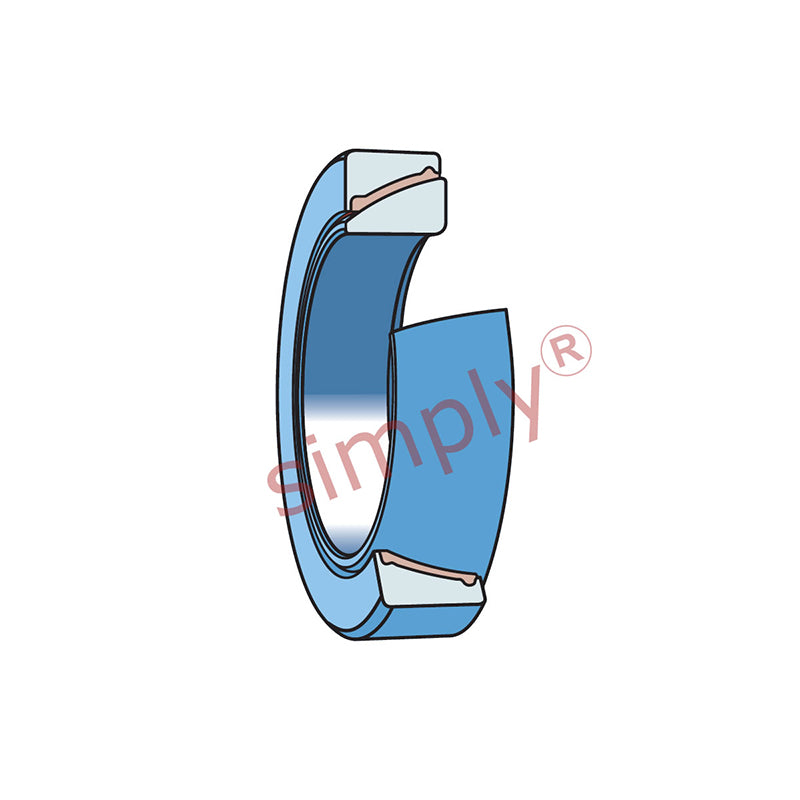

SKF GAC60F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 60x95x23mm
SKF GAC60F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 60x95x23mm
Regular price
$183.90
ex VAT
Regular price
Sale price
$183.90
ex VAT
Equivalent to: GE60SX GAC60T
In stock
Price Break
10+
$123.18
19+
$116.26
29+
$114.88
39+
$113.50
49+
$112.11
74+
$110.73
99+
$103.81
199+
$102.42
249+
$101.04
499+
$99.65
999+
$96.89
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 23mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| T | 23mm |
| Angle | 3 degrees |
| Dynamic load | 69.5 kN |
| Static load | 112 kN |
| dk | 88.5mm |
| B | 23mm |
| C | 21mm |
| r1 min | 1.5mm |
| r2 min | 0.6mm |
| s | 5.7mm |
| da max | 68mm |
| db max | 77mm |
| Da min | 70mm |
| Db min | 90mm |
| ra max | 1.5mm |
| Weight | 0.73 kg |
