SKU: GAC70F-SKF

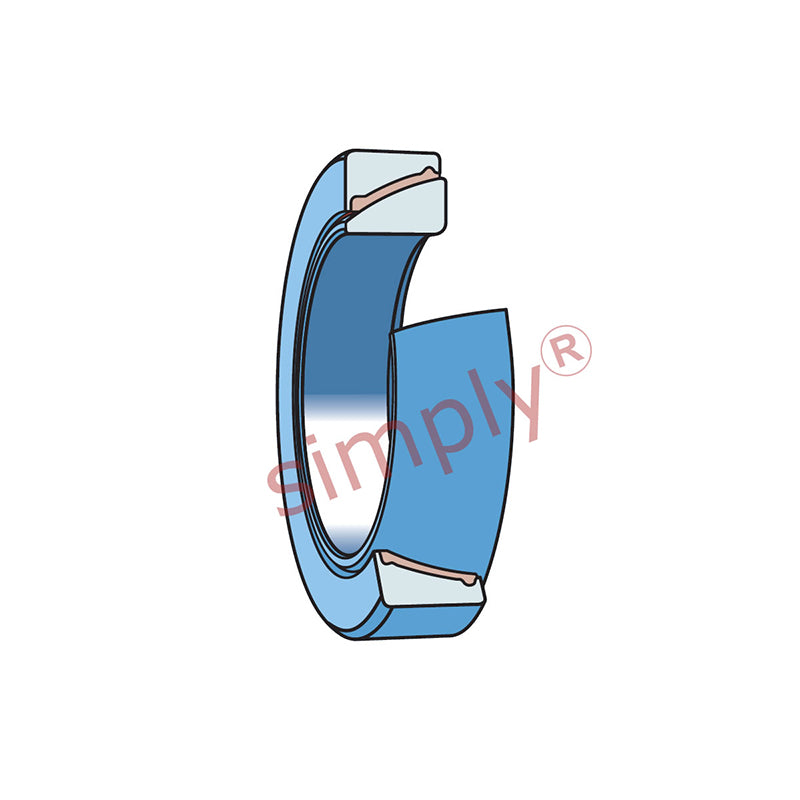

SKF GAC70F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 70x110x25mm
SKF GAC70F Angular Contact Spherical Plain Bearing Steel / PTFE Fabric 70x110x25mm
Regular price
$288.93
ex VAT
Regular price
Sale price
$288.93
ex VAT
Equivalent to: GE70SX GAC70T
In stock
Price Break
10+
$193.53
19+
$182.66
29+
$180.48
39+
$178.31
49+
$176.13
74+
$173.96
99+
$163.09
199+
$160.91
249+
$158.74
499+
$156.56
999+
$152.21
Quantity
Couldn't load pickup availability
Description
Description
SKF Spherical Plain Bearings: Maintenance-free angular contact spherical plain bearings, with sliding contact surface combination, steel/PTFE composite. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 25mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| T | 25mm |
| Angle | 2.5 degrees |
| Dynamic load | 88 kN |
| Static load | 143 kN |
| dk | 102mm |
| B | 25mm |
| C | 23mm |
| r1 min | 1.5mm |
| r2 min | 0.6mm |
| s | 7.2mm |
| da max | 78mm |
| db max | 92mm |
| Da min | 85mm |
| Db min | 103mm |
| ra max | 1.5mm |
| Weight | 1.05 kg |
