SKU: GAR8DO-INA

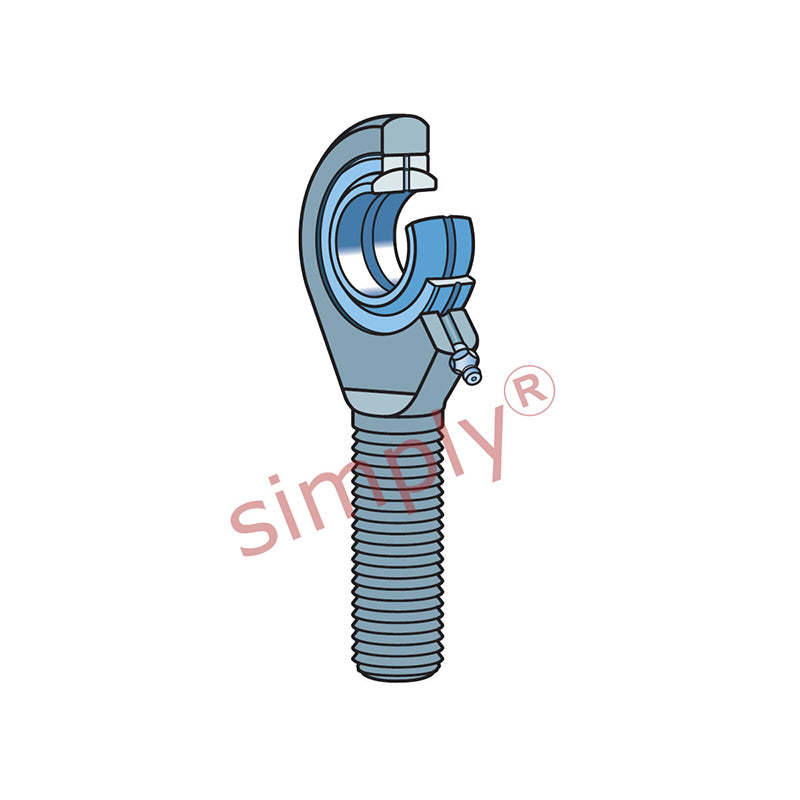

INA GAR8-DO Right Hand Steel Plain Male Rod End M8 Thread

Name: INA GAR8-DO Right Hand Steel Plain Male Rod End M8 Thread
Brand: INA
SKU: GAR8DO-INA
Price: 25.96 USD
Availability: InStock

$25.96 ex VAT

Sale Sold out

Equivalent to: 4012802525298 GAR8DO GAR8ES SA8E

In stock

Price Break

10+ $17.39

19+ $16.41

29+ $16.22

39+ $16.02

49+ $15.83

74+ $15.63

99+ $14.66

199+ $14.46

249+ $14.26

499+ $14.07

999+ $13.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA GAR..-DO Series Rod Ends: These right-hand thread rod end bearings have an external thread and require maintenance. The contact material is Steel on Steel.

Brand / Quality:: INA - High Quality
Thread Size:: M8
Thread Direction:: Right Hand

Technical

d	8mm (+0/-0.008)
d2	24mm
l2	54mm
Radial internal clearance CN	0.023-0.068mm
B	8mm (+0/-0.12)
C1	6mm
Thread	M8
dk	13mm
h	42mm
l1	22mm
l7	14mm
Chamfer dimension r1s min	0.3mm
a	15°
Mass	0.029 kg
Basic dynamic load Cr	5590 N
Basic static load Cor	12900 N
