SKU: GARS12-FLURO

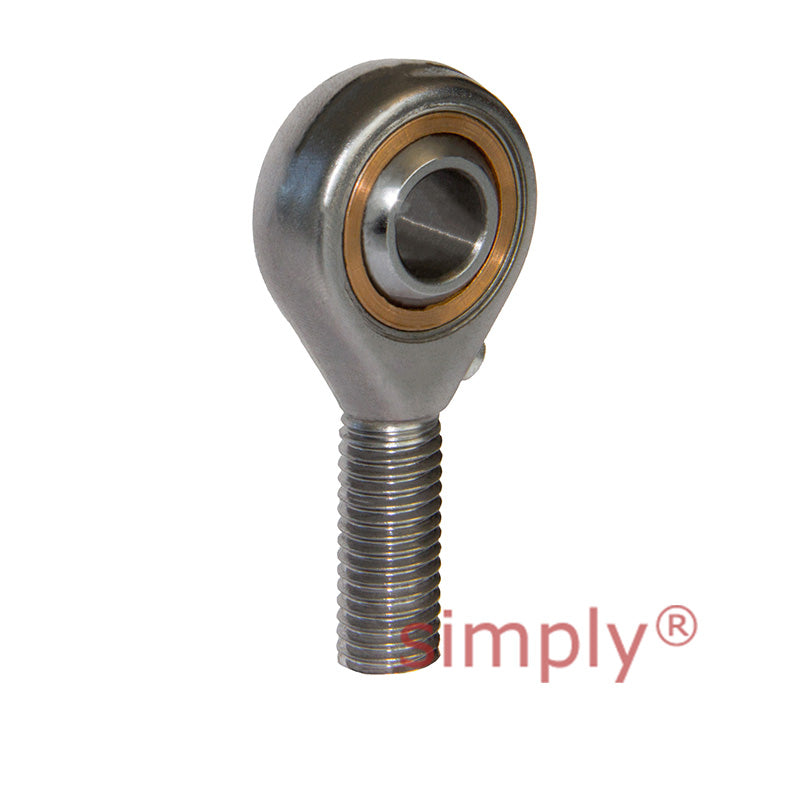

Fluro GARS12 Right Hand Stainless Steel / Bronze Male Plain Rod End M12 Thread
Fluro GARS12 Right Hand Stainless Steel / Bronze Male Plain Rod End M12 Thread
Out of stock
Share this product
Description
Description
Fluro GARS Series Stainless Steel / Bronze Maintenance Required Male Plain Rod Ends: Rod Ends with male thread from stainless steel, regreasable through grease nipple in housing. For use in corrosive environments
Benefits: Grease nipple for easy re-greasing
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M12
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 12mm
- Inside Diameter:
- 12mm
- Material:
- Stainless Steel / Bronze
Technical
Technical
| Bore Size D | 12mm |
|---|---|
| B | 16mm |
| M | 12mm |
| A | 32mm |
| F | 54mm |
| L | 70mm |
| O | 15.4mm |
| Thread Size G | M12 |
| GL | 32mm |
| Static Load Co | 34.5kN |
| Dynamic Load | 13.5kN |
| Limiting Speed | 860rev/min |
| Approx weight | 0.087kg |
