SKU: GASW50-FLURO

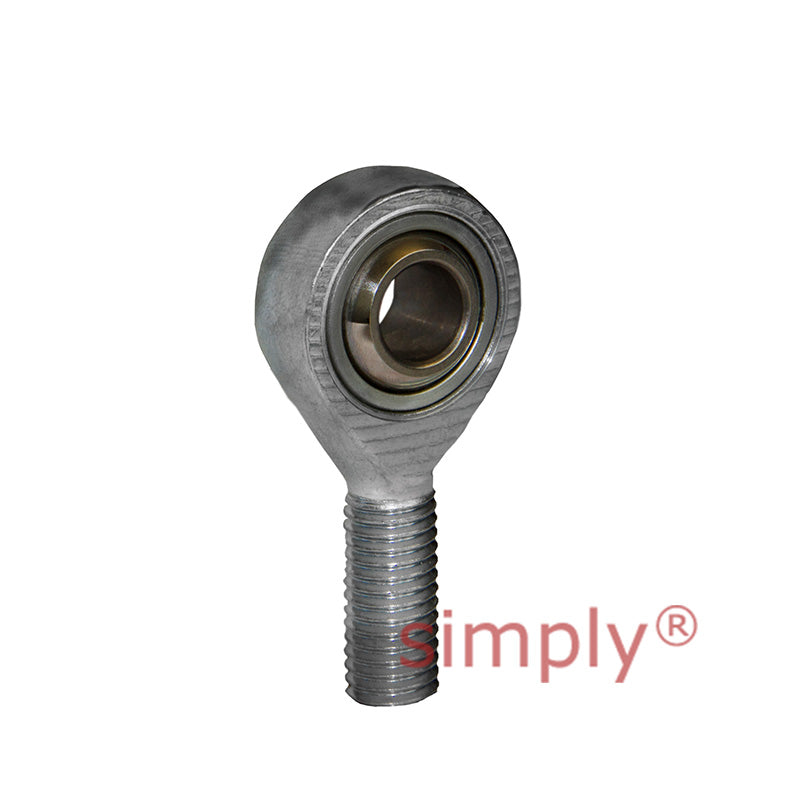

Fluro GASW50 Right Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M48x2 Thread
Fluro GASW50 Right Hand Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod End M48x2 Thread
Out of stock
Description
Description
Fluro GASW Series Zinc Plated Steel / PTFE Lined Maintenance Free Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel, zinc plated with PTFE liner, maintenance free. For use at dynamic loads
Benefits: Maintenance Free
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M48x2
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Thread Length:
- 48x2mm
- Inside Diameter:
- 50mm
- Material:
- Steel / PTFE Lined
Technical
Technical
| Bore Size D | 50mm |
|---|---|
| B | 60mm |
| M | 45mm |
| A | 116mm |
| F | 185mm |
| L | 243mm |
| O | 55.9mm |
| Thread Size G | M48x2 |
| GL | 105mm |
| Static Load Co | 308kN |
| Dynamic Load | 485kN |
| Limiting Speed | 80rev/min |
| Approx weight | 4.8kg |
