SKU: GE10E.EU

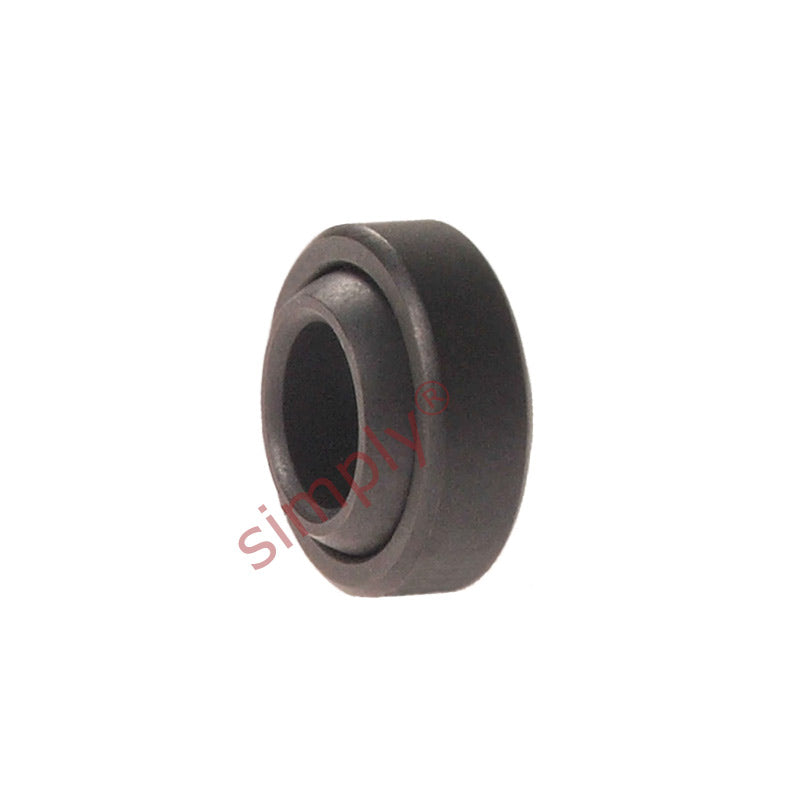

GE10E Spherical Plain Bearing 10x19x9x6mm

Name: GE10E Spherical Plain Bearing 10x19x9x6mm
Brand: Simply Spherical Plain
SKU: GE10E.EU
Price: 5.30 USD
Availability: InStock

$5.30 ex VAT

Sale Sold out

In stock

Price Break

10+ $3.55

19+ $3.35

29+ $3.31

39+ $3.27

49+ $3.23

74+ $3.19

99+ $2.99

199+ $2.95

249+ $2.91

499+ $2.87

999+ $2.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC)
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 10mm
Outside Diameter:: 19mm
Width:: 9mm

Technical

d	10mm
D	19mm
B	9mm
C	6mm
dk	16mm
rs min	0.3mm
r1s min	0.3mm
Angle α	12°
Dynamic load Co	8.1 kN
Static load Cor	40 kN
Weight	0.011 kg
