SKU: GE10PB

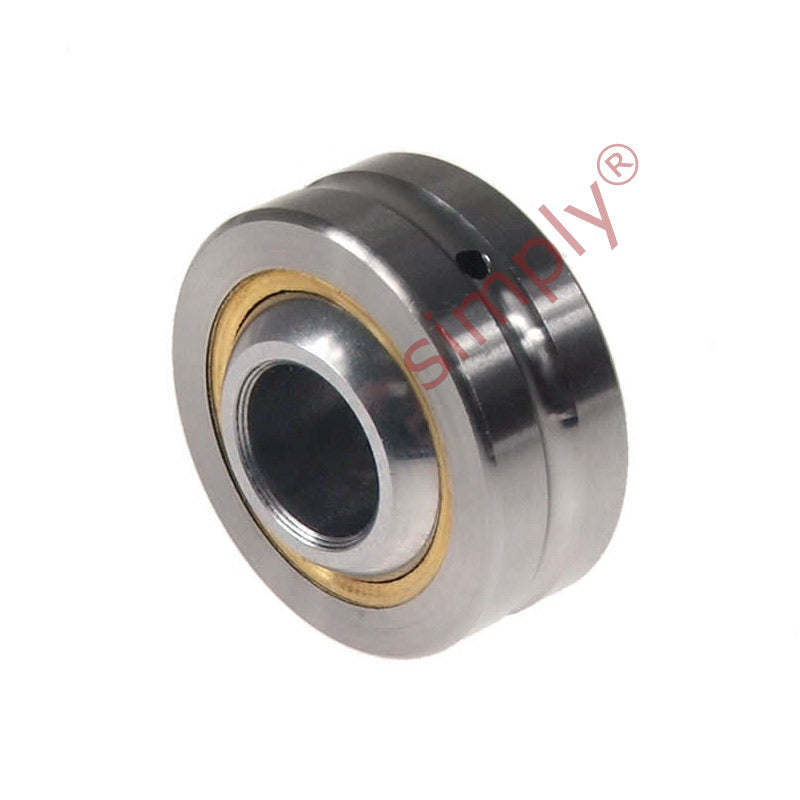

GE10PB Steel / Phosphor Bronze Spherical Plain Bearing 10x22x14x10.5mm
GE10PB Steel / Phosphor Bronze Spherical Plain Bearing 10x22x14x10.5mm
Regular price
$19.52
ex VAT
Regular price
Sale price
$19.52
ex VAT
In stock
Price Break
10+
$13.07
19+
$12.34
29+
$12.19
39+
$12.04
49+
$11.90
74+
$11.75
99+
$11.02
199+
$10.87
249+
$10.72
499+
$10.58
999+
$10.28
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing with Phosphor Bronze Race: Consisting of phosphor bronze raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 22mm
- Width:
- 14mm
Technical
Technical
| d | 10mm |
|---|---|
| D | 22mm |
| B | 14mm |
| C | 10.5mm |
| dk | 19.05mm |
| Angle α | 13° |
| Dynamic load Co | 10 kN |
| Static load Cor | 25 kN |
| Weight | 0.027 kg |
