SKU: GE110ES.EU

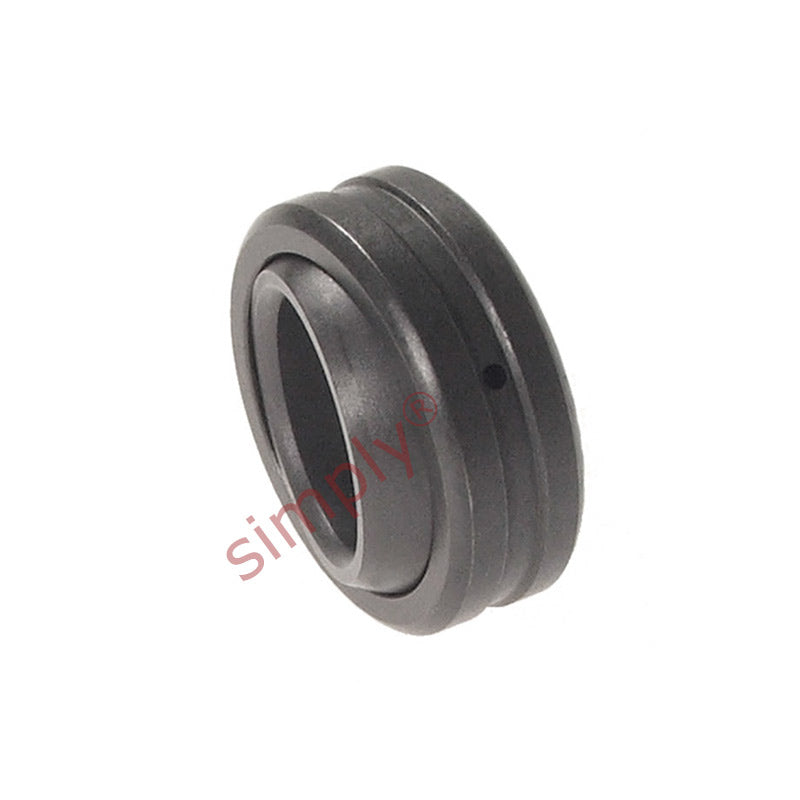

GE110ES Spherical Plain Bearing 110x160x70x55mm

Name: GE110ES Spherical Plain Bearing 110x160x70x55mm
Brand: Simply Spherical Plain
SKU: GE110ES.EU
Price: 190.85 USD
Availability: InStock

$190.85 ex VAT

Sale Sold out

In stock

Price Break

10+ $127.84

19+ $120.66

29+ $119.22

39+ $117.79

49+ $116.35

74+ $114.91

99+ $107.73

199+ $106.30

249+ $104.86

499+ $103.42

999+ $100.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 110mm
Outside Diameter:: 160mm
Width:: 70mm

Technical

d	110mm
D	160mm
B	70mm
C	55mm
dk	140mm
rs min	1mm
r1s min	1mm
Angle α	6°
Dynamic load Co	654 kN
Static load Cor	3270 kN
Weight	4.82 kg
