SKU: GE12E.EU

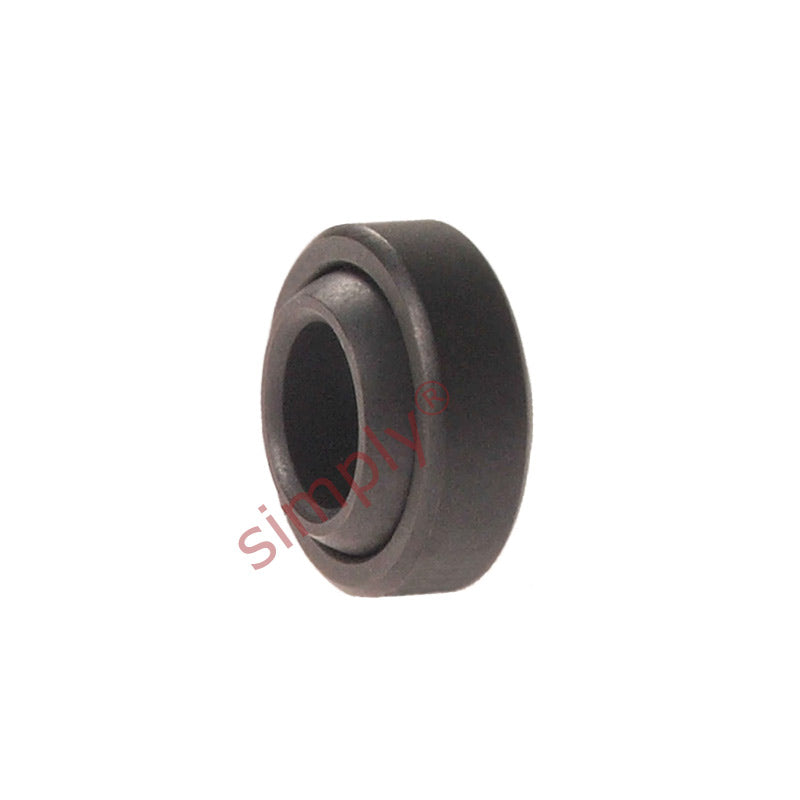

GE12E Spherical Plain Bearing 12x22x10x7mm

Name: GE12E Spherical Plain Bearing 12x22x10x7mm
Brand: Simply Spherical Plain
SKU: GE12E.EU
Price: 5.47 USD
Availability: InStock

$5.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $3.67

19+ $3.46

29+ $3.42

39+ $3.38

49+ $3.34

74+ $3.30

99+ $3.09

199+ $3.05

249+ $3.01

499+ $2.97

999+ $2.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC)
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 22mm
Width:: 10mm

Technical

d	12mm
D	22mm
B	10mm
C	7mm
dk	18mm
rs min	0.3mm
r1s min	0.3mm
Angle α	10°
Dynamic load Co	10 kN
Static load Cor	53 kN
Weight	0.015 kg
