SKU: GE140ES.EU

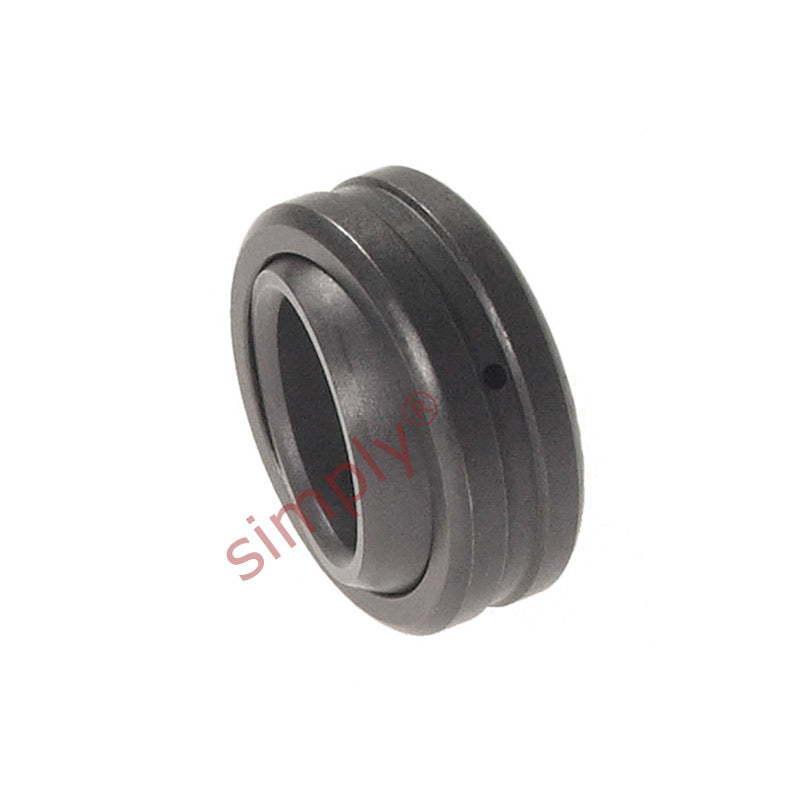

GE140ES Spherical Plain Bearing 140x210x90x70mm

Name: GE140ES Spherical Plain Bearing 140x210x90x70mm
Brand: Simply Spherical Plain
SKU: GE140ES.EU
Price: 444.58 USD
Availability: InStock

$444.58 ex VAT

Sale Sold out

In stock

Price Break

10+ $297.79

19+ $281.06

29+ $277.72

39+ $274.37

49+ $271.03

74+ $267.68

99+ $250.95

199+ $247.60

249+ $244.26

499+ $240.91

999+ $234.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 140mm
Outside Diameter:: 210mm
Width:: 90mm

Technical

d	140mm
D	210mm
B	90mm
C	70mm
dk	180mm
rs min	1mm
r1s min	1mm
Angle α	7°
Dynamic load Co	1070 kN
Static load Cor	5350 kN
Weight	11.02 kg
