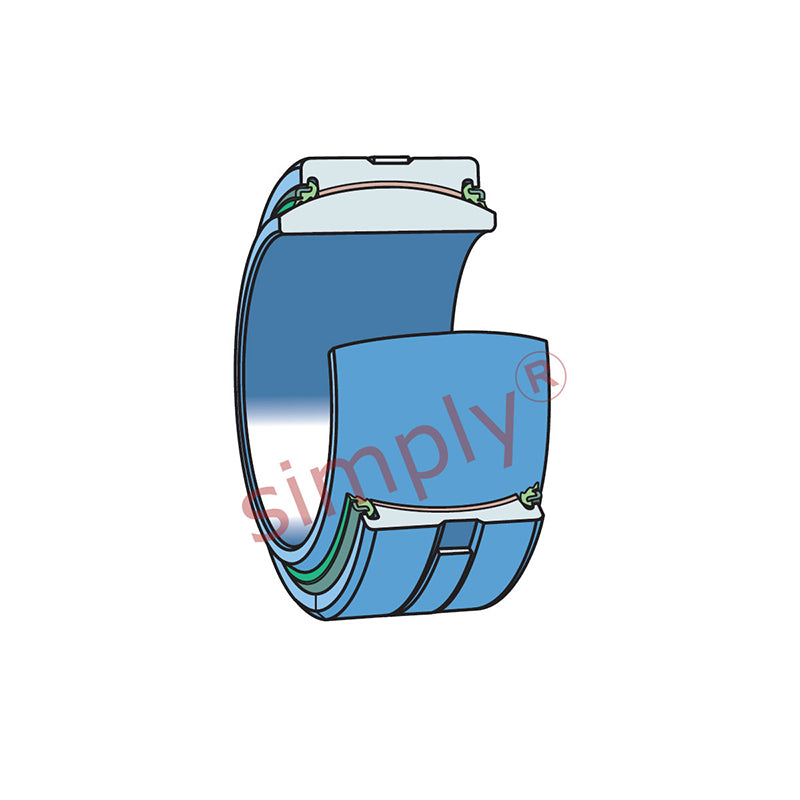

SKF GE140TXA2RS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 140x210x90x70mm

Name: SKF GE140TXA2RS Maintenance Free Spherical Plain Bearing Steel / PTFE Fabric 140x210x90x70mm
Brand: SKF
SKU: GE140TXA-2RS-SKF
Price: 1420.87 USD
Availability: InStock

$1,420.87 ex VAT

Sale Sold out

In stock

Price Break

10+ $951.74

19+ $898.27

29+ $887.58

39+ $876.88

49+ $866.19

74+ $855.50

99+ $802.03

199+ $791.33

249+ $780.64

499+ $769.95

999+ $748.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF GE..TXA..2RS Series Spherical Plain Bearing: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of hardened and ground chrome plated steel against PTFE impregnated fabric these spherical plain bearings are fitted with double lip seals and require no maintenance.
Application: Suitable for very heavy, constant direction loads, where low friction is required; limited suitability for alternating loads, shock loads. A characteristic of SKF steel / against PTFE impregnated fabric spherical plain bearings is the intentionally split outer ring in this case axially spit and held together by a single retaining spring clip around an annular groove in the outer raceway or in some instances bolted together. This greatly improves ease of assembly in many instances however care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joints are positioned at 90 degrees to the direction of load.
Benefits: Maintenance free operation.

Brand / Quality:: SKF - High Quality
Inside Diameter:: 140mm
Outside Diameter:: 210mm
Width:: 90mm

Technical

d	140mm
D	210mm
B	90mm
C	70mm
Max misalignment angle	7 degrees
Dynamic load	3000 kN
Static load	5000 kN
dk	180mm
r1 min	1mm
r2 min	1mm
da min	149mm
da max	155.5mm
Da max	202mm
Da min	180mm
ra max	1mm
rb max	1mm
Weight	11 kg
