SKU: GE14PW.INA

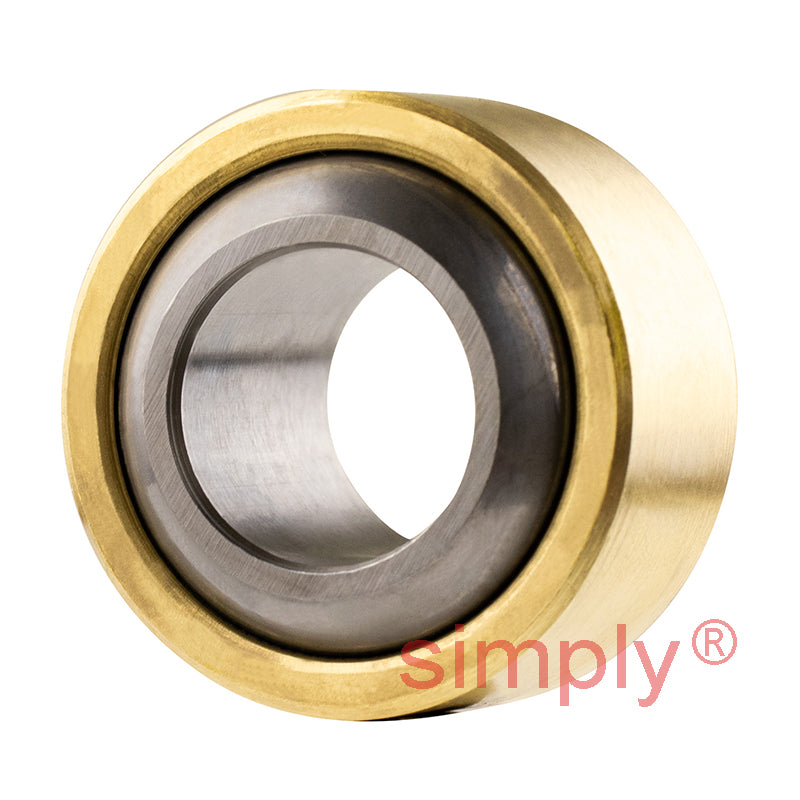

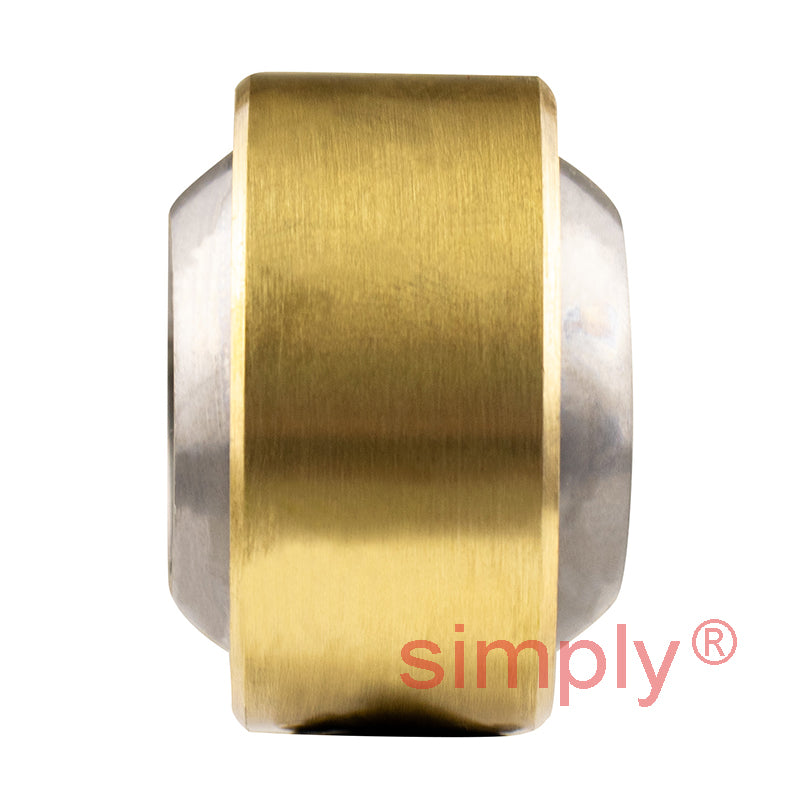

INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm

INA GE14PW Steel / PTFE Spherical Plain Bearing 14x28x19x13.5mm
$51.25 ex VAT
$51.25 ex VAT
Sale Sold out

Equivalent to: GE14-PW

In stock

Price Break
10+ $34.33
19+ $32.40
29+ $32.01
39+ $31.63
49+ $31.24
74+ $30.86
99+ $28.93
199+ $28.54
249+ $28.16
499+ $27.77
999+ $27.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA GE..-PW Series Spherical Plain Bearings: This series is classed as maintenance free radial spherical plain bearings. Comprising of sliding contact surfaces of steel against PTFE these spherical plain bearings are unsealed and are maintenance-free.
Brand / Quality:
INA - High Quality
Inside Diameter:
14mm
Outside Diameter:
28mm
Width:
19mm
Technical
d 14mm (Bore tolerance: H7 (arithmetic mean value))
D 28mm (Tolerance: 0/-0.009)
B 19mm (Tolerance: 0/-0.12)
Radial internal clearance 0.006-0.035mm
C 13.5mm (Tolerance: 0/-0.24)
Da min 22.5mm
da max 16.8mm
dk 25.4mm
Chamfer dimension r1s min 0.3mm
Chamfer dimension r2s min 0.3mm
a 16°
Mass 0.054 kg
Basic dynamic load, radial Cr 31000 N
Basic static load, radial Cor 77500 N
