SKU: GE15ES.EU

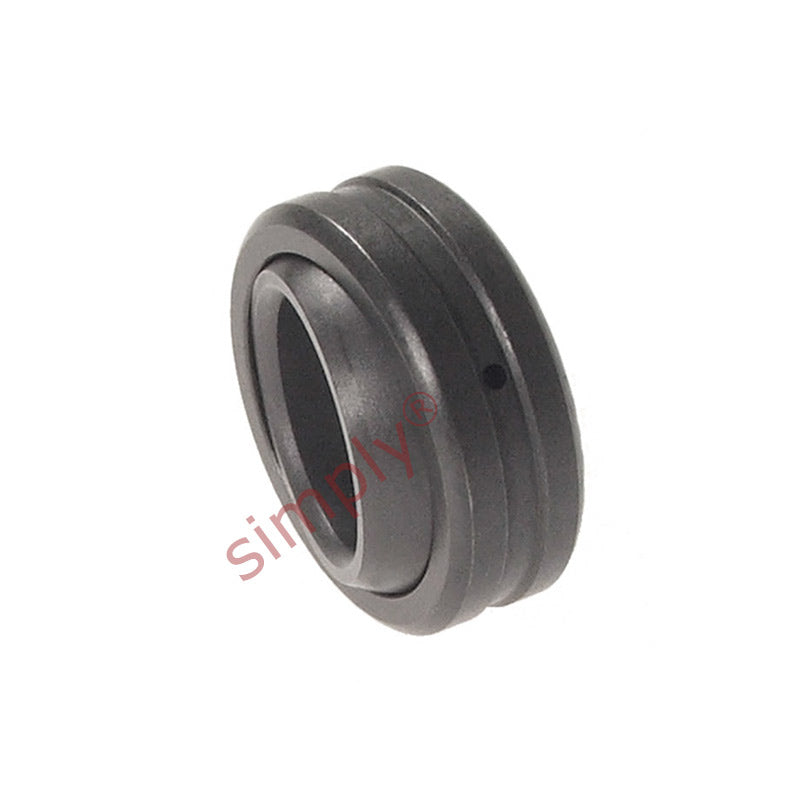

GE15ES Spherical Plain Bearing 15x26x12x9mm

Name: GE15ES Spherical Plain Bearing 15x26x12x9mm
Brand: Simply Spherical Plain
SKU: GE15ES.EU
Price: 7.81 USD
Availability: InStock

$7.81 ex VAT

Sale Sold out

In stock

Price Break

10+ $5.23

19+ $4.94

29+ $4.88

39+ $4.82

49+ $4.76

74+ $4.71

99+ $4.41

199+ $4.35

249+ $4.29

499+ $4.23

999+ $4.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove
Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel
Note: The outer raceway may have as part of the manufacturing process a split or crack

Brand / Quality:: Simply Spherical Plain - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 26mm
Width:: 12mm

Technical

d	15mm
D	26mm
B	12mm
C	9mm
dk	22mm
rs min	0.3mm
r1s min	0.3mm
Angle α	8°
Dynamic load Co	16 kN
Static load Cor	84 kN
Weight	0.027 kg
